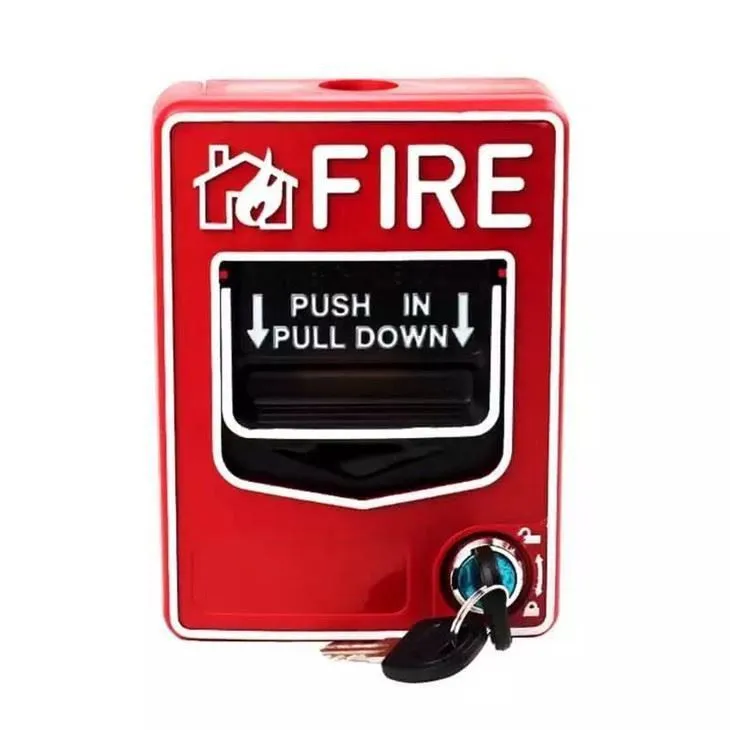

Fire Manual Pull Station

Loop design and wiring:

● The fire alarm control panel Zone wire can be connected to terminal loop(+), loop(-) unpolarized wire

● If the manual call point is at the end of the zone wire, a 5.6K resistance should be connected to terminal loop(+), loop(-)

● Attention: Alarm host not included, need buy separately.

INSTALLATION

NOTE: All wiring must conform to applicable local

codes, ordinances, and regulations.

Mounting Indoor Wall

1. Attach mounting base to wall at 1.5 meter's high.

2. Connect field wiring to terminals

3. To attach product to mounting base.

4. Secure product by tightening the one mounting screws in the front of the product housing.

Every fire alarm we sell comes complete with a 5year manufacturer's warranty, provided it is serviced in accordance with the requirements of BS 5306 part 3. This guarantee does not cover defects caused by accident, misuse or neglect.

Technical Details:

Clear Picture as Followed for Expressing Characteristics of Product Shape:
