China Fire Hose Reel Manufacturer
XINHAO FIRE manufactures manual swing type, automatic swing type, fixed pipe, die cast, stainless steel and mobile fire hose reel systems for commercial, industrial and municipal fire protection projects worldwide.
Reliable Fire Hose Reel Partner
Whether you are a distributor, contractor, engineering company or fire equipment importer, we provide dependable fire hose reel solutions backed by manufacturing experience, strict quality control and OEM capability.
Complete Product Range
From manual swing hose reels to mobile firefighting units, we offer solutions for virtually every fire protection application.
OEM Manufacturing
Private label branding, customized specifications and project-based manufacturing services are available.
Quality Inspection
Each hose reel is inspected and tested before shipment to ensure reliable field performance.
Global Supply Experience
Serving distributors and project contractors in commercial, industrial and infrastructure sectors.
Custom Fire Hose Reel Product
Different installations require different fire hose reel designs. Explore our complete product family below.
How To Choose Fire Hose Reel?
Compare different fire hose reel types and select the most suitable option for your project.
| Type | Rotation | Material Option | Best For |
|---|---|---|---|
| Manual Swing | Manual | Steel / Die Cast | Commercial Buildings |
| Automatic Swing | Automatic | Steel | Public Facilities |
| Fixed Pipe | Fixed | Steel | Industrial Plants |
| Die Cast | Fixed | Die Cast Alloy | Heavy Duty Use |
| Stainless Steel | Manual | 304 / 316 SS | Marine & Coastal Areas |
| Mobile Type | Portable | Steel Cart | Large Open Areas |
Fire Hose Reel Applications
Fire hose reels are widely used in facilities where immediate access to a continuous water supply is essential for first-response firefighting.
Commercial Buildings
Office buildings, shopping malls, hotels and mixed-use developments.
Industrial Facilities
Factories, workshops, production plants and logistics centers.
Warehouses
Storage facilities requiring immediate fire response capability.
Public Infrastructure
Schools, hospitals, airports and transportation hubs.
Request Your Fire Hose Reel Today
Contact us for a quote or technical consultation. We provide customized fire safety solutions to meet your project needs.
Send Inquiry
-
![Fire Hose Reel Die Cast]()
Fire Hose Reel Die Cast-- Not only about compliance, but also about the critical moments of life and death that demand swift action -- . During the crucial 180 seconds of fire suppression, the reliability of the equipment
-
![Twist Jet Spray Pattern Fire Hose Reel Nozzle]()
Twist Jet Spray Pattern Fire Hose Reel NozzleBest Twist Jet Spray Pattern Fire Hose Reel Nozzle in China. Body Material:Nylon. Finishing:Red. Working Pressure:12 bar. Test Pressure:18 bar.
-
![Plastic Fire Hose Nozzles]()
Plastic Fire Hose NozzlesBest Plastic fire hose nozzles in China. Body Material:Nylon. Finishing:Red. Working Pressure:12 bar. Test Pressure:18 bar.
-
![Adjustable Firefighting Fire Nozzle]()
Adjustable Firefighting Fire NozzleBest Adjustable Firefighting Fire Nozzle in China. Body Material:Nylon. Finishing:Red. Working Pressure:12 bar. Test Pressure:18 bar.
-
![Jet Spray Nozzle For Fire Hose]()
Jet Spray Nozzle For Fire HoseBest Jet Spray Nozzle for Fire Hose. Body Material:Nylon. Finishing:Red. Working Pressure:12 bar. Test Pressure:18 bar.
-
![Red Adjustable Water Nozzle]()
Red Adjustable Water NozzleBest red adjustable water nozzle. Body Material:Nylon. Finishing:Red. Working Pressure:12 bar. Test Pressure:18 bar.
-
![Red Brass Fire Hose Nozzles]()
Red Brass Fire Hose NozzlesInlet：19 mm/25 mm. Body Material:Brass or Nylon. Finishing：Red or no. Working Pressure：12 bar. Test Pressure：18 bar. Flow Rate @ 6 bar：Jet: 55 L/min & Spray: 63 L/min. Throw Range @ 4 bar：Jet: 10 m &
-
![Brass Core Fire Hose Reel Jet Spray Nozzle]()
Brass Core Fire Hose Reel Jet Spray NozzleInlet：19 mm/25 mm. Body Material:Brass or Nylon. Finishing：Red or no. Working Pressure：12 bar. Test Pressure：18 bar. Flow Rate @ 6 bar：Jet: 55 L/min & Spray: 63 L/min. Throw Range @ 4 bar：Jet: 10 m &
-
![Brass Twist-style Fire Hose Reel Nozzle]()
Brass Twist-style Fire Hose Reel NozzleInlet：19 mm/25 mm. Body Material:Brass or Nylon. Finishing：Red or no. Working Pressure：12 bar. Test Pressure：18 bar. Flow Rate @ 6 bar：Jet: 55 L/min & Spray: 63 L/min. Throw Range @ 4 bar：Jet: 10 m &
Manual Swing Type Fire Hose Reel
Manual swing fire hose reels are among the most widely used hose reel configurations in commercial and industrial fire protection systems. The rotating swing arm allows the reel to pivot during operation, improving hose deployment and helping users reach different fire locations more efficiently.
ISO Manual Swing Type Fire Hose Reel
This series features a die-cast side plate structure combined with a swing arm mechanism for flexible operation. It is designed for installation in commercial buildings, warehouses, factories and public facilities where quick access to firefighting equipment is required.
- Manual swing arm design
- Compact wall-mounted installation
- Smooth hose deployment
- Durable die-cast construction
- Suitable for indoor fire protection systems
| Model | XH-FF-06-01a | XH-FF-06-01b | XH-FF-06-01C |
|---|---|---|---|
| Disc Diameter | 550 mm / 585 mm | 550 mm / 585 mm | 550 mm / 585 mm |
| Inlet Connection | Die Cast Swing Arm 1" BSP | Die Cast Swing Arm 1" BSP | Die Cast Swing Arm 1" BSP |
| Hose Size (Ø x Length) | 19 mm x 25 m | 19 mm x 30 m | 25 mm x 30 m |
| Swing Dimension (A x B x C) | 495 mm x 550 mm x 160 mm | 525 mm x 550 mm x 190 mm | 525 mm x 585 mm x 190 mm |
| Close Dimension (A x B x C) | 250 mm x 550 mm x 160 mm | 280 mm x 550 mm x 190 mm | 280 mm x 585 mm x 190 mm |
| Recess Dimension (L x W x D) | 700 mm x 700 mm x 290 mm | 760 mm x 760 mm x 320 mm | 760 mm x 760 mm x 320 mm |
| Maximum Working / Test Pressure | 12 bar / 18 bar | ||
| Standard Nozzle Type | Brass or Nylon Jet / Spray Nozzle | ||
| Nozzle Orifice | 6 mm | 6 mm | 7 mm |
| Minimum Flow Rate @ 4 bar | 34 L / min | 34 L / min | 44 L / min |
| Drum Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | ||
ISO Manual Swing Type Fire Hose Reel
This series expands the manual swing product range with additional size and configuration options. Designed for project flexibility, this series is suitable for distributors and contractors looking for multiple hose reel specifications within a unified product family.
- Flexible installation configuration
- Reliable hose management
- Suitable for fire hose reel cabinets
- Stable reel rotation
- Commercial and industrial applications
|
Model |
XH-FF-06-02a | XH-FF-06-02b | XH-FF-06-02c |
|---|---|---|---|
| Disc Diameter | 550 mm / 585mm | 550 mm / 585mm | 550 mm / 585mm |
| Inlet Connection | Die Cast Swing Arm 1" BSP | Die Cast Swing Arm 1" BSP | Die Cast Swing Arm 1" BSP |
| Hose Size (Ø x Length) | 19 mm x 25m | 19 mm x 30 m | 25 mm x 30 m |
| Swing Dimension (A x B x C) | 525 mm x 550 mm x 160 mm | 555 mm x 550 mm x 190 mm | 525 mm x 585 mm x 145 mm |
| Close Dimension (A x B x C) | 220 mm x 550 mm x 160 mm | 250 mm x 550 mm x 190 mm | 210 mm x 585 mm x 145 mm |
| Recess Dimension (L x W x D) | 700 mm x 700 mm x 250 mm | 700 mm x 700 mm x 290 mm | 730 mm x 730 mm x 225 mm |
| Maximum Working / Test Pressure | 12 bar / 18 bar | ||
| Standard Nozzle Type | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle |
| Nozzle Orifice | 6 mm | 6 mm | 7 mm |
| Minimum Flow Rate @ 4 bar | 34 L / min | 34 L / min | 44 L / min |
| Drum Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | ||
Why Choose Manual Swing Fire Hose Reel?
Flexible Coverage
The swing arm allows operators to direct the hose toward different firefighting areas.
Simple Operation
Easy deployment and rewinding with minimal maintenance requirements.
Space Efficient
Wall-mounted design helps save floor space and supports cabinet installation.
Cost Effective
One of the most economical hose reel solutions for commercial buildings.
Automatic Swing Type Fire Hose Reel
Designed for modern fire protection systems, the automatic swing type fire hose reel improves accessibility and hose deployment efficiency through its automatic positioning mechanism.
ISO Automatic Swing Type Fire Hose Reel
Compared with conventional manual swing hose reels, automatic swing models help position the reel during deployment, reducing operator effort and improving usability in emergency situations.
- Automatic swing mechanism
- Quick hose deployment
- Optimized access inside cabinets
- Suitable for modern building fire systems
- Professional appearance and structure
| Model | XH-FF-06-03a | XH-FF-06-03b | XH-FF-06-03c |
|---|---|---|---|
| Disc Diameter | 550 mm / 585 mm | 550 mm / 585 mm | 550 mm / 585 mm |
| Inlet Connection | Hose 25 mm × 1 m | Hose 25 mm × 1 m | Hose 25 mm × 1 m |
| Hose Size (Ø × Length) | 19 mm × 25 m | 19 mm × 30 m | 25 mm × 30 m |
| Swing Dimension (A × B × C) | 535 mm × 550 mm × 160 mm | 565 mm × 550 mm × 190 mm | 525 mm × 585 mm × 145 mm |
| Close Dimension (A × B × C) | 235 mm × 550 mm × 160 mm | 265 mm × 550 mm × 190 mm | 210 mm × 585 mm × 145 mm |
| Recess Dimension (L × W × D) | 700 mm × 700 mm × 250 mm | 700 mm × 700 mm × 290 mm | 730 mm × 730 mm × 225 mm |
| Maximum Working / Test Pressure | 12 bar / 18 bar | ||
| Standard Nozzle Type | Brass or Nylon Jet / Spray Nozzle | ||
| Nozzle Orifice | 6 mm | ||
| Minimum Flow Rate @ 4 bar | 34 L / min | ||
| Drum Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | ||
Manual Swing Or Automatic Swing?
Choosing the right hose reel depends on installation requirements, operating preferences and project budget.
| Feature | Manual Swing | Automatic Swing |
|---|---|---|
| Operation | Manual | Automatic Assistance |
| Installation | Wall / Cabinet | Wall / Cabinet |
| Budget | Economical | Premium |
| Typical Use | Commercial Buildings | High-End Projects |
Fixed Pipe Fire Hose Reel
Fixed pipe fire hose reels are designed for installations where a stable and permanent hose reel position is preferred. Compared with swing type reels, the fixed pipe design provides a simpler structure, reduced moving parts and excellent long-term reliability.
ISO Fixed Pipe Fire Hose Reel
The fixed pipe series is commonly installed in factories, warehouses, logistics centers and utility buildings where the hose reel remains in a fixed operational position. The simplified structure helps reduce maintenance requirements while ensuring dependable emergency response capability.
- Stable fixed installation structure
- Reduced maintenance requirements
- Suitable for industrial environments
- Easy integration into fire protection systems
- Long service life
| Model | XH-FF-06-05a | XH-FF-06-05b |
|---|---|---|
| Disc Diameter | 550 mm / 585mm | 550 mm / 585mm |
| Inlet Connection | Fixed Pipe 1" BSP | Fixed Pipe 1" BSP |
| Hose Size (Ø x Length) | 19 mm x 30 m | 25 mm x 30 m |
| Dimension (A x B x C) | 235 mm x 550 mm x 160 mm | 265 mm x 585 mm x 190 mm |
| Maximum Working / Test Pressure | 12 bar / 18 bar | 12 bar / 18 bar |
| Standard Nozzle Type | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle |
| Nozzle Orifice | 6 mm | 7 mm |
| Minimum Flow Rate @ 4 bar | 34 L / min | 44 L / min |
| Drum Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | RAL 3000 Flame Red Epoxy Polyester Powder Coating |
Where Are Fixed Pipe Fire Hose Reels Commonly Used?
Factories
Manufacturing facilities requiring permanent firefighting equipment locations.
Warehouses
Large storage environments where durability and reliability are priorities.
Utility Buildings
Mechanical rooms, power facilities and service buildings.
Industrial Sites
Projects requiring simple, rugged and low-maintenance fire protection equipment.
Fixed Die Cast Fire Hose Reel
The fixed die cast fire hose reel combines structural strength with precision manufacturing. Its robust construction makes it suitable for demanding commercial and industrial fire protection environments.
ISO Fixed Die Cast Fire Hose Reel
Die cast manufacturing provides improved dimensional consistency, structural rigidity and long-term durability. This makes the hose reel particularly suitable for facilities that expect frequent inspections, continuous readiness and extended service life.
- High structural strength
- Precision die cast components
- Excellent dimensional stability
- Professional appearance
- Long service life
| Model | XH-FF-06-06a | XH-FF-06-06b | XH-FF-06-06c |
|---|---|---|---|
| Disc Diameter | 550 mm / 585mm | 550 mm / 585mm | 550 mm / 585mm |
| Inlet Connection | Die Cast Fixed Arm 1" BSP | Die Cast Fixed Arm 1" BSP | Die Cast Fixed Arm 1" BSP |
| Hose Size (Ø x Length) | 19 mm x 25 m | 19 mm x 30 m | 25 mm x 30 m |
| Close Dimension (A x B x C) | 220 mm x 550 mm x 160 mm | 250 mm x 550 mm x 190 mm | 210 mm x 585 mm x 145 mm |
| Maximum Working / Test Pressure | 12 bar / 18 bar | 12 bar / 18 bar | 12 bar / 18 bar |
| Standard Nozzle Type | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle |
| Nozzle Orifice | 6 mm | 6 mm | 7 mm |
| Minimum Flow Rate @ 4 bar | 34 L / min | 34 L / min | 44 L / min |
| Drum Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | RAL 3000 Flame Red Epoxy Polyester Powder Coating | RAL 3000 Flame Red Epoxy Polyester Powder Coating |
Stainless Steel Fire Hose Reel
For environments exposed to moisture, salt air or corrosive conditions, stainless steel fire hose reels provide superior corrosion resistance and long-term appearance retention.

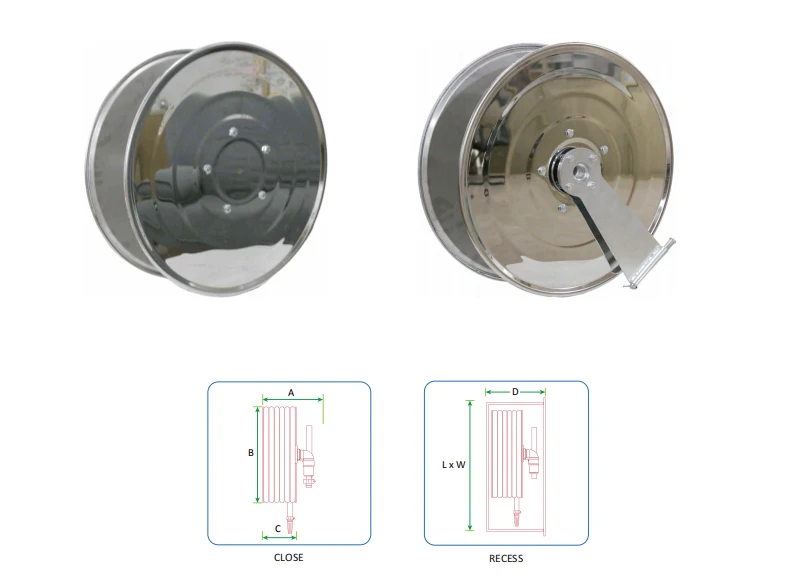

ISO Stainless Steel Fire Hose Reel
Stainless steel hose reels are frequently selected for coastal projects, marine facilities, food processing plants, pharmaceutical environments and locations where long-term resistance to corrosion is essential.
- Corrosion resistant construction
- Suitable for humid environments
- Ideal for coastal installations
- Professional appearance
- Reduced maintenance requirements
| Model | XH-FF-06-07a | XH-FF-06-07b | XH-FF-06-07c |
|---|---|---|---|
| Disc Diameter | 550 mm / 585mm | 550 mm / 585mm | 550 mm / 585mm |
| Inlet Connection | Hose 25 mm x 1 m | Hose 25 mm x 1 m | Hose 25 mm x 1 m |
| Hose Size (Ø x Length) | 19 mm x 25 m | 19 mm x 30 m | 25 mm x 30 m |
| Close Dimension (A x B x C) | 220 mm x 550 mm x 160 mm | 250 mm x 550 mm x 190 mm | 210 mm x 585 mm x 145 mm |
| Recess Dimension (L x W x D) | 700 mm x 700 mm x 250 mm | 700 mm x 700 mm x 290 mm | 730 mm x 730 mm x 225 mm |
| Maximum Working / Test Pressure | 12 bar / 18 bar | 12 bar / 18 bar | 12 bar / 18 bar |
| Standard Nozzle Type | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle | Brass or Nylon Jet / Spray Nozzle |
| Nozzle Orifice | 6 mm | 6 mm | 7 mm |
| Minimum Flow Rate @ 4 bar | 34 L / min | 34 L / min | 44 L / min |
| Drum Finishing | SS | SS | SS |
Which Fire Hose Reel Material Should You Choose?
| Material | Advantages | Recommended Environment |
|---|---|---|
| Painted Steel | Economical & versatile | Commercial buildings & factories |
| Die Cast | Strength & durability | Heavy-duty industrial projects |
| Stainless Steel | Corrosion resistance | Marine, coastal & humid areas |
Mobile Fire Hose Reel Cart
Unlike fixed fire hose reel systems, mobile fire hose reels can be moved directly to the emergency location, making them ideal for large warehouses, industrial facilities, construction sites and outdoor applications where fixed installations may not provide sufficient coverage.
Portable Emergency Response Solution
- Wheel Braking Device
- Hose Guide with Nylon Roller Beads
- Water Inlet with Stop Valve
- Quick Rolling Handwheel
| Model | XH-FF-06-08a | XH-FF-06-08b | XH-FF-06-08c |
|---|---|---|---|
| Type | Mobile Continuous Flow Hose Reel | Mobile Continuous Flow Hose Reel | Mobile Continuous Flow Hose Reel |
| Nozzle | 1 1/2" Swivel Handline Nozzle | 1 1/2" Swivel Handline Nozzle | 1 1/2" Swivel Handline Nozzle |
| Nozzle Flow Setting | GPM - 30-60-95-125 | GPM - 30-60-95-125 | GPM - 30-60-95-125 |
| Hose Size (Ø x Length) | 1 1/2" × 30 m | 1 1/2" × 30 m | 1 1/2" × 60 m |
| Hose Outlet | 1 1/2" NHT | ||
| Hose material | Red Oil Resistant and Ozone Resistant Synthetic Reinforced Rubber | ||
| Hose Maximum Working Pressure | 17 bar | ||
| Throw Range | 18 m @ 7 bar | ||
| Disc Diameter | 625 mm | ||
| Inlet Connection | 1 1/2" Male BST | ||
| Trolley Frame Material | Galvanized Mild Steel Painted Red | ||
| Handwheel Material | Galvanized Mild Steel Painted Black | ||
| Wheel | 12" | ||
| Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | ||
| Approx. Overall Size (H × W × D) | 900 mm × 945 mm × 1050 mm | ||
| Designed & Manufactured to | Factory Manufacturing Standard | ||
Quality Control Throughout Production
Reliable fire protection equipment requires consistent manufacturing standards and inspection procedures. Every production stage is monitored to ensure product quality and performance.
Raw Material Inspection
Verification of incoming materials before production.
Manufacturing Inspection
Process monitoring throughout fabrication and assembly.
Pressure Testing
Functional testing to verify operational reliability.
Final Inspection
Product verification before packaging and shipment.
OEM & Private Label Service
We support distributors, wholesalers and project contractors with customized manufacturing solutions.
Logo Branding
Custom brand identification on products and packaging.
Custom Packaging
Packaging solutions designed for your market requirements.
Project Specifications
Customized hose reel configurations for engineering projects.
Long-Term Supply
Stable manufacturing support for distributors and contractors.
Frequently Asked Questions
1.What is a fire hose reel used for?
A fire hose reel provides a continuous water supply for first-response firefighting and is commonly used for Class A fires.
2.What fire hose reel types do you manufacture?
We manufacture manual swing, automatic swing, fixed pipe, die cast, stainless steel and mobile fire hose reel systems.
3.Can you provide OEM service?
Yes. We support private label branding, customized specifications and project-based manufacturing.
4.Which fire hose reel is best for coastal areas?
Stainless steel fire hose reels are recommended for marine and coastal environments due to their corrosion resistance.
5.How can I get a quotation?
Send us your project requirements, specifications or quantity requirements and our team will provide a quotation.
Looking For A Reliable Fire Hose Reel Supplier?
Whether you need standard products, OEM manufacturing or project-based solutions, XH FIRE is ready to support your business.
We're well-known as one of the leading fire hose reel manufacturers and suppliers in China for our quality products and good service. Please feel free to buy custom made fire hose reel at competitive price from our factory.
