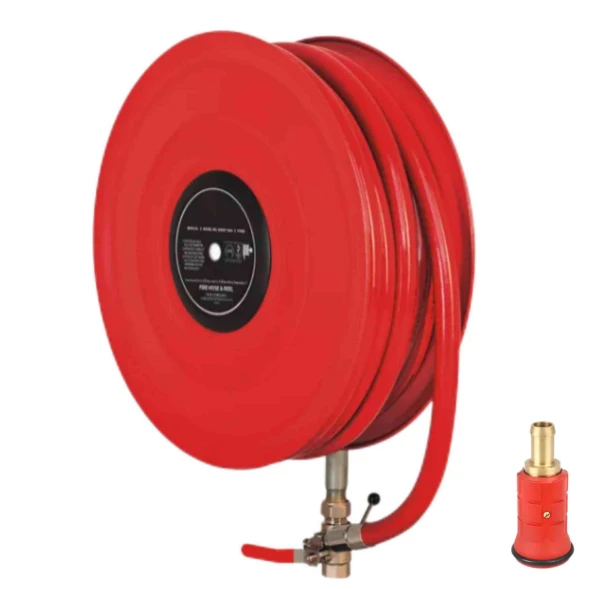

Fixed Pipe Fire Hose Reel Design Features
Fixed Pipeline Connection Design
The fixed inlet structure connects directly with the building fire water supply system through a 1" BSP fixed pipe, reducing additional hose connection components and providing a stable installation method for permanent fire protection systems.
This design is suitable for locations where the hose reel position remains fixed and a simple connection layout is required.
Two Hose Configuration Options
The reel is available with different hose sizes to meet different water discharge requirements:
19 mm × 30 m hose
25 mm × 30 m hose
The hose length provides sufficient coverage distance for indoor firefighting applications while maintaining a compact reel structure.
Pressure and Water Flow Performance
The product specifications include:
Maximum working pressure: 12 bar
Test pressure: 18 bar
Nozzle orifice: 6 mm / 7 mm
Minimum flow rate: 34 L/min @ 4 bar (19 mm hose model)
44 L/min @ 4 bar (25 mm hose model)
The standard nozzle options include brass jet/spray nozzle and nylon jet/spray nozzle, allowing selection based on water discharge requirements.
Compact Installation Structure
The reel uses a fixed mounting design with compact dimensions:
XH-FF-06-04a: 235 mm × 550 mm × 160 mm
XH-FF-06-04b: 265 mm × 585 mm × 190 mm
The compact structure helps optimize installation space in fire equipment cabinets, corridors and wall-mounted locations.
Fixed Pipe Fire Hose Reel Technical Data
| Model | XH-FF-06-04a | XH-FF-06-04b |
|---|---|---|
| Disc Diameter | 550 mm / 585 mm | 550 mm / 585 mm |
| Inlet Connection | Fixed Pipe 1" BSP | Fixed Pipe 1" BSP |
| Hose Size | 19 mm × 30 m | 25 mm × 30 m |
| Dimension (A×B×C) | 235 × 550 × 160 mm | 265 × 585 × 190 mm |
| Maximum Working Pressure | 12 bar | 12 bar |
| Test Pressure | 18 bar | 18 bar |
| Nozzle Type | Brass or Nylon Jet/Spray Nozzle | Brass or Nylon Jet/Spray Nozzle |
| Nozzle Orifice | 6 mm | 7 mm |
| Minimum Flow Rate @ 4 bar | 34 L/min | 44 L/min |
| Drum Finishing | RAL 3000 Flame Red Epoxy Polyester Powder Coating | |
Installation Environments
The fixed installation hose reel is designed for buildings and facilities requiring permanent fire hose access points. Typical applications include:
Commercial buildings
Industrial facilities
Warehouses
Parking structures
Public buildings
Fire protection rooms
The fixed pipe connection design allows integration with existing fire water pipeline systems, making it suitable for new construction projects and fire protection system upgrades.
Xinhao Fire Hose Reel Production & Customization
Ningbo Xinhao Firefighting Equipment Co., Ltd. provides manufacturing solutions for fire protection equipment distributors, contractors and engineering suppliers. Customization options include:
Hose length selection
Hose diameter configuration
Brass or nylon nozzle options
Product packaging customization
Project-based specification adjustment
The production process covers metal component manufacturing, drum assembly, surface coating, pressure testing and final inspection.
Fire Hose Reel Inspection Process
es inspection procedures during manufacturing, including:
Raw material inspection
Component dimension checking
Assembly inspection
Water pressure testing
Surface coating inspection
The factory follows ISO9001:2015 quality management requirements to maintain consistent product specifications for batch production.
FAQ
1. How can the fixed pipe hose reel be integrated into a fire protection system?
The reel is designed with a 1" BSP fixed pipe connection, allowing connection with existing building fire water pipelines. It can be installed in new construction projects or used for fire protection system upgrades.
2. What configurations can be provided for different projects?
Ningbo Xinhao supports different hose configurations, including 19 mm × 30 m and 25 mm × 30 m options. Hose specifications, nozzle selection, and connection requirements can be adjusted according to project needs.
3. What pressure testing is performed before shipment?
Each unit is tested at 18 bar before delivery. The standard maximum working pressure is 12 bar to verify pressure resistance and operational stability.
4. Can Xinhao provide customized hose reel solutions for OEM projects?
Yes. Xinhao supports OEM and project customization, including product specifications, hose configurations, nozzle options, surface finishing, labeling, and packaging requirements.
5. What quality inspections are included during production?
The production process includes material inspection, component assembly checks, structural inspection, pressure testing, and final product verification before shipment.
Start Your Fire Hose Reel Project
Ningbo Xinhao Firefighting Equipment Co., Ltd. supplies fixed installation fire protection equipment for distributors, contractors and engineering projects. With configurable hose sizes, nozzle options and manufacturing support, we help customers develop suitable hose reel solutions according to building layouts and fire protection requirements.
