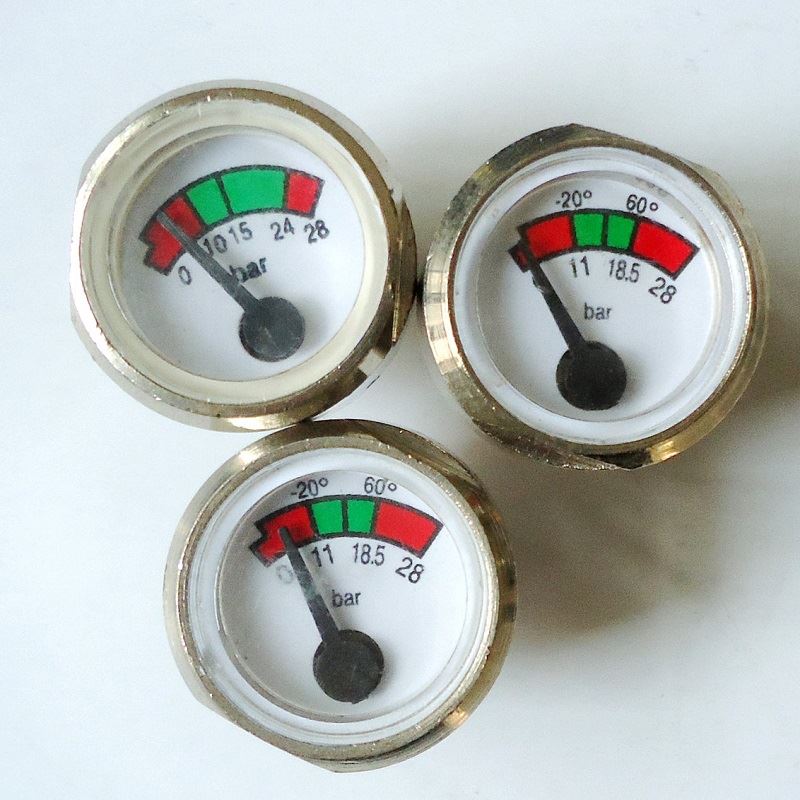

Fire Extinguisher Pressure Gauge

Fire is a serious safety risk, and fire extinguishers are critical tools used to control and extinguish fires. A fire extinguisher pressure gauge is a device used to measure the internal pressure of a fire extinguisher to ensure that it can work properly when needed.The working principle of the pressure gauge is to display the internal pressure of the fire extinguisher through a pointer indicator. When the pressure is within the normal range, the pointer usually stays in the green area. If the pressure is too high or too low, the needle may point to a red area, indicating that the fire extinguisher needs maintenance or refilling.

Product Feature



Accuracy

Provides accurate pressure readings to ensure fire extinguishers can operate effectively when needed.



Durability

Designed to withstand environmental changes and harsh conditions, ensuring long-term reliability.



Legibility

Clear markings and indicators allow users to easily read pressure data.



Easy to install

Easy to install on fire extinguishers and can be easily used by ordinary users.





fire extinguisher pressure gauge

view more



fire extinguisher gauge

view more



water fire extinguisher gauge

view more



abc fire extinguisher pressure gauge

view more

What types of fire extinguishers are suitable?
Our pressure gauges cover mainstream fire extinguisher types such as dry powder, carbon dioxide, and water-based types. We can provide corresponding specifications according to the working pressure of the fire extinguisher (such as 1.6MPa, 2.5MPa, etc.), and also support customized adaptation of special models. ​

What is the operating temperature range and service life of the pressure gauge? ​
The operating temperature range is - 30℃ to + 60℃, and it can adapt to high and low temperature environments; under normal use conditions, the service life is ≥5 years, and the internal spring tube has undergone 200,000 cycle pressure tests to ensure long-term stability. ​

Does it support batch customization of logos or specific ranges?
It supports printing the purchaser's logo, model and other information on the dial, and the range can be adjusted according to needs (such as 0-4MPa).

What is the sealing performance of the product? Can it prevent corrosion of fire extinguishing agents?​
The interface uses nitrile rubber sealing rings, which are oil-resistant and chemical-resistant, with a leakage rate of ≤0.5%/year; for volatile media such as carbon dioxide, special models have added anti-leakage diaphragm design to effectively resist erosion by fire extinguishing agents.
