Core advantage
Structural innovation design
Three-channel pressure stabilizing technology: Built-in turbulent flow buffer chamber, three branches independently controlled for pressure, avoiding water pressure imbalance
Quick-connect snap-on system: Complete pipeline connection by hand in 5 seconds, unobstructed blind operation in dark environments
Anti-disengagement locking ring: Zero loosening of the interface under severe vibration, verified by 2,000 violent tests
Breakthrough in military-grade aluminum materials
Forged ADC12 aviation aluminum: The blast pressure resistance reaches 8.5MPa, which is 2.7 times higher than the national standard
Micro-arc oxidation coating: Corrosion resistance grade reaches CX level, no erosion after long-term immersion in seawater or chemical agents
Suitable for operating conditions ranging from -40℃ to 260℃ : No cracking in extreme cold and no deformation under intense heat
Intelligent fluid management
▶️ traffic visualization window
- Real-time monitoring of three independent flowmeters (optional)
- The red warning ring indicates that a single channel is overloaded
▶️ adaptive differential pressure compensation
- Automatically balance the water hammer effect of the system when the branch is opened or closed
Full-scenario adaptation system
✅ standard configuration: 2.5-inch Gost thread
✅ customized services:
- The interface modification of American standard NPT/ German standard DIN/ Japanese standard JIS
- Special diameters of 1.5 to 4 inches are pre-ordered
- Explosion-proof electrical interface/insulation layer/anti-freezing version is available for selection
Practical performance data
| Scene | Traditional single path | This product is three-way | Efficiency improvement |
| Factory fire | 45 m | 18 m | 150% |
| High-rise water supply | 120 m | 280 m | 133% |
| Cooling of hazardous chemicals | 2 points | 6 points | 200% |

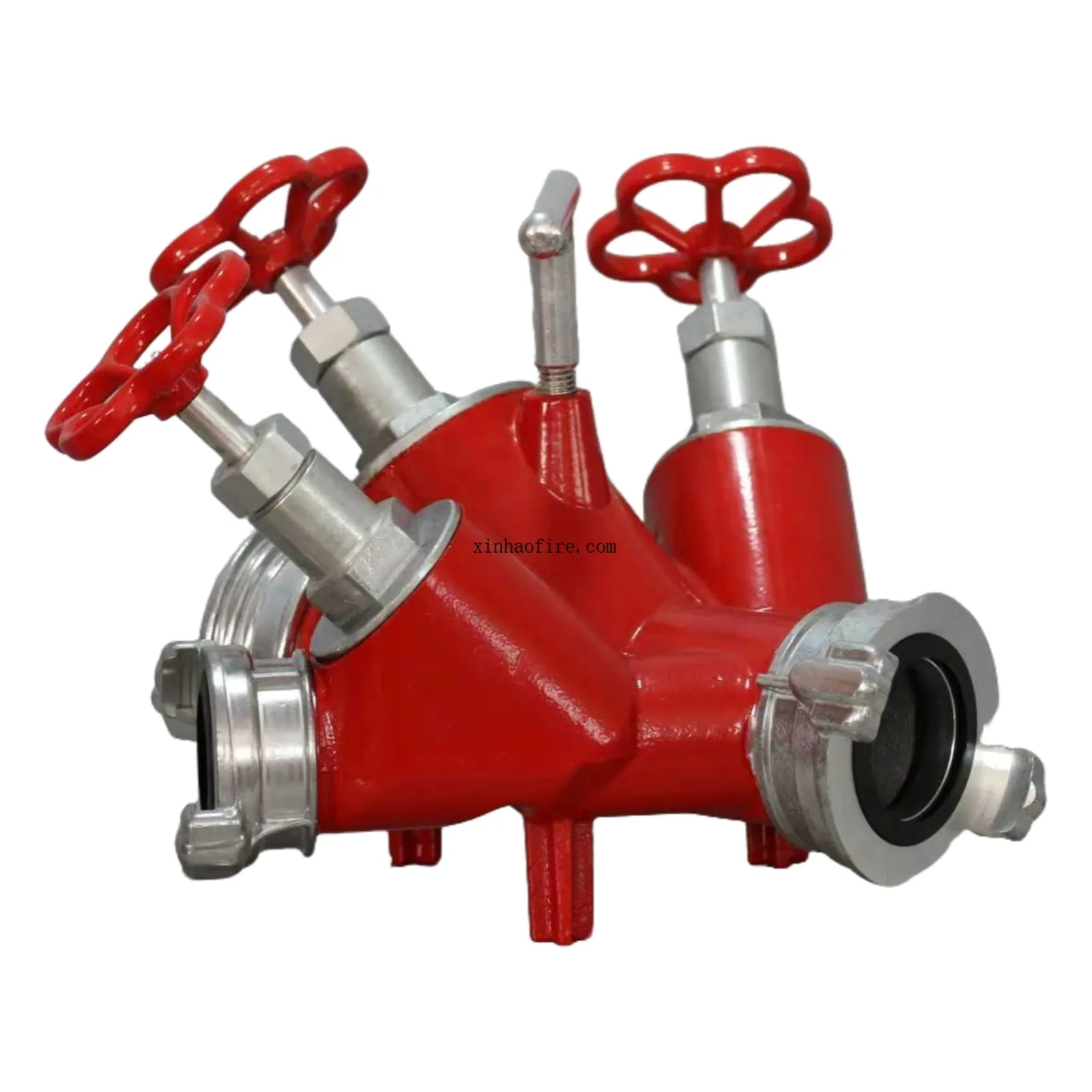

「 One in and three out, no loss of traffic 」Precisely distribute water flow, freely switch between single-path operation and multi-path simultaneous shooting, and increase fire coverage efficiency by 3 times.
Aluminum lightweight design
Forged from aviation-grade aluminum alloy, reducing weight by 30%, resistant to corrosion and high pressure, capable of withstanding extreme fire environments.
2.5-inch Gost standard interface
Seamlessly compatible with fire-fighting equipment in various countries, with compatibility improved by 50%, eliminating connection errors during rescue operations.
⚙️ technical parameter table
| Project | Parameter details |
| Material | aluminum |
| Inlet/outlet diameter | 2.5" Gost |
| Work pressure | 0.8-2.5 MPa |
| Blasting pressure | ≥8MPa |
| Temperature resistance range | - 30 ℃ ~ 120 ℃ |
FAQ
Q: How does this product specifically enhance the efficiency of fire extinguishing in large factory fires?
A: Practical case: A fire broke out in the resin workshop of a certain chemical plant. Traditional single-line water supply could only alternately cover four fire points.
Our plan:
✅ The middle section of is connected to an 80-meter water hose directly targeting the core of the fire source
✅ The left side is connected to a water cannon to cool down the hazardous chemicals storage tank
✅ the right side supplies a high-lift jet vehicle to block the spread
Effect comparison: Originally, it took 3 groups of personnel 45 minutes to control the scene, but now 1 group of personnel can complete the fire scene division in 18 minutes.
Q: How does the product address the pressure loss during vertical transportation for water supply in high-rise buildings?
A: Configuration plan:
✅ The entrance is connected to medium and low pressure fire engines (1.2-1.6MPa).
✅ three branches correspond respectively to:
【 Route B 】65mm water hose for floors below 20
【 Route C 】80mm water hose for floors 21 to 35
【 Route D 】Booster module for floors 36 to 50 (optional)
Measured data: The terminal pressure remains at 0.45MPa at a vertical height of 280 meters.
