Products Description
The Fire Fighting Hose Reel is mainly composed of an input line, split pin, fixed axis, turn the arm, water supply pipe joint, o-ring, hoses, hollow shaft, baffle, support core frame, bend, spray gun, etc. It uses water as the fire extinguishing agent and can quickly jet water onto fires during firefighting operations. This new type of indoor fixed consumption device offers a reliable means of extinguishing fires effectively.
Characteristic
Strong pressure resistance
The main body has higher hardness and can withstand high pressure, ensuring effective use in emergencies.
Corrosion resistance
With rust-proof and corrosion-resistant powder coating, it can be used for a long time in humid environments without damage.
Smooth water flow
Designed for smooth water flow, convenient to use, allowing for quick and effective spraying of water for firefighting.
Easy of use
The fire hose reel is easy to operate, ensuring convenient use for both trained personnel and untrained individuals during emergencies.

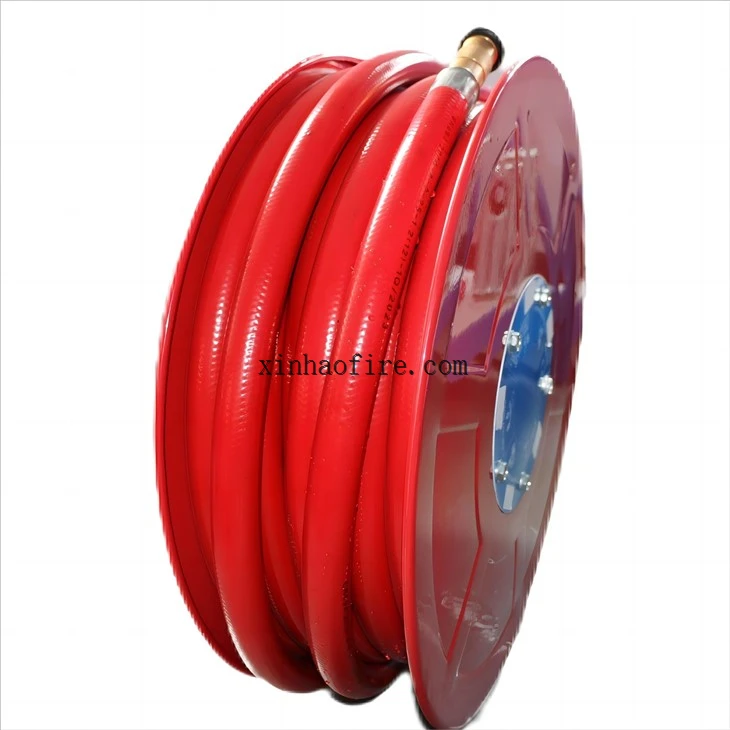

Products Show
Application
The fire hose reel is generally installed in indoor fire hydrant boxes and is suitable for installation in shopping malls, hotels, buildings, and other public places. It is a new type of indoor fixed consumption device and is considered an important auxiliary firefighting equipment in the fire hydrant water supply system. It is used to extinguish fires caused by flammable liquids and is part of the indoor fire protection system.
How To Roll Hose On Reel
1.Lay the hose flat on the ground in a straight line.
2.Fold the hose in half so that the couplings are aligned, with one half lying on top of the other.
3.Roll the hose onto the reel, starting from the end opposite to the folded end without the couplings. Ensure that you finish with the nozzle and a female coupling exposed.
4.Connect the female coupling to the water source, ensuring the hose is unrolled before opening the water valve for immediate use.
Parameter
| Fire Fighting Hose Reel | ||||||
| Rated Working Pressure | Jetting Test Pressure | Jetting Length | Flux | Hose Size | Hose Material | Hose Length |
| 0.8MPa/1.0Mpa | 0.4MPa/0.6mPA | More than 6m/12M | More than 24L/min/48L/min | 3/4 Inch, 1inch | PVC | 20m, 25m,30m |
FAQ
Q1: What is hose reel?
A1: Hose reel is a device used to store and deploy hoses for extinguishing fires. It typically consists of a cylindrical drum or spool around which the hose is wound, along with mechanisms for winding and unwinding the hose.
Q2: How does the hose reel work?
A2: The fire fighting hose reel works by allowing firefighters to quickly access and deploy a hose to extinguish fires. The hose is typically connected to a water source and wound around the reel when not in use. When needed, the hose is pulled from the reel and directed toward the fire.
Q3: How should a hose reel be maintained?
A3: Maintenance of a hose reel typically involves regular inspections, testing, and servicing to ensure that the hose, reel, and associated components are in good working condition. This may include checking for leaks, ensuring proper winding and unwinding of the hose, and inspecting couplings and nozzles for damage.
Packaging & Transportation
Through meticulous design and the careful selection of high-quality packaging materials, we ensure that products are effectively protected and presented to the highest standards.Our approach to pallet utilization not only optimizes logistical processes but also enhances transportation efficiency, ensuring timely delivery.
When it comes to loading, we meticulously select top-quality containers to guarantee safe transportation. Our transportation services offer a variety of options, including container shipping and express delivery, all customized to meet the specific needs of our customers and ensure timely arrival.
