Fire Water Monitor

Fire water monitors are divided into: automatic scanning water jet high-altitude monitors, solid manual fire monitors, automatic fire seeking monitors, and electronically controlled fire monitors.

The water supply system mainly consists of water source, fire water pump, high-level water tank or air pressure stabilizing device, water pump adapter and pipeline. Its purpose is to provide a fast and sufficient water source to the device.

The execution system is composed of intermediate execution devices such as fire extinguishing devices, power supply devices, and automatic fire alarm devices, that is, the relevant components that perform fire extinguishing and alarm actions when a fire occurs.

The control system consists of linkage control cabinets, regional control boxes, system power controllers, and computer fire monitoring systems. Its purpose is to control the water supply system and execution system, and can flexibly realize various operations of manual, automatic, on-site and fire control centers. And the automatic tracking and positioning jet fire extinguishing system can be directly connected to the automatic fire alarm center through the input module and input and output module to ensure the integrity of the fire alarm system.



• SS304 Stainless Steel construction;

• Automatic nozzle;

• Vertical travel of 180°,from -90° to +90°;

• 360° rotation horizontally;

• Electric control jetting Pattern: Straight stream,Fog;

• Electric.driver and control unit box are waterproof;

• Optional power supply 12V/24V DC(optional),or 100-230 V AC.

Configure your monitor

Please select the display and its nozzle type in the parameters below. Set the operation requirements and edit the copy, click Send Inquiry, and we will send you an email. You will see the range and height of the fire extinguishing agent flow and the resulting recoil.

Calculate the range and height of the fire extinguishing agent

Please select the monitor and nozzle type shown in the parameters below. Set the operation requirements to edit the copy, and we will calculate the range and height of the fire extinguishing agent injection and the reaction force that occurs.

PSKD10A

PSKD20A

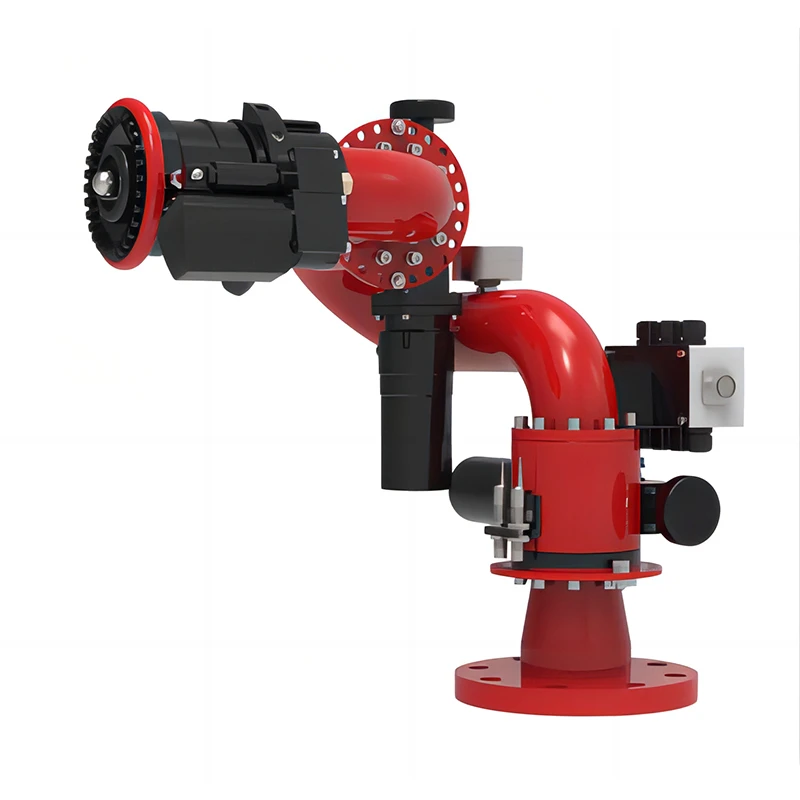

PSKD20-40A

PSKD80A

PSKD_EX-A Series

PLKD_A Series

PLKD_Y Series

PLKD64EX-A, PLKD80EX-A

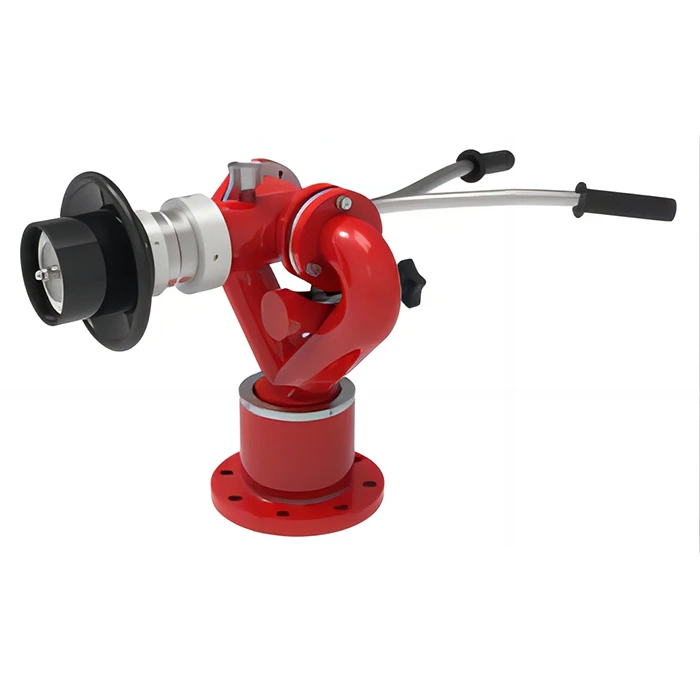

PS30-50
