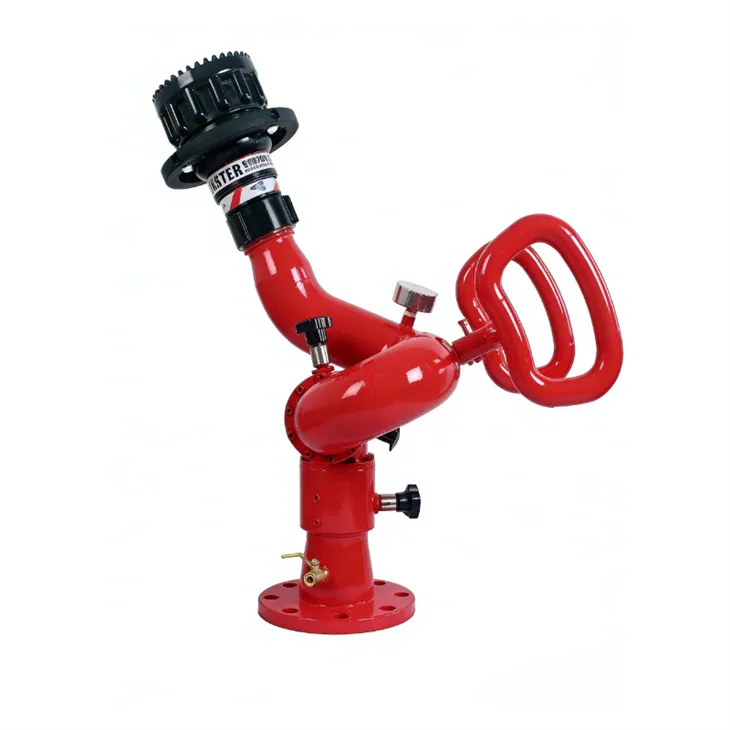

High Flow Fire Monitor
Industrial-grade SS304 high flow fire monitor, designed for large-scale firefighting applications, offering precise control, long-distance reach, and durable corrosion-resistant construction.
Product Overview
The High Flow Fire Monitor (Model: XH-80UT) is engineered for industrial firefighting systems requiring ultra-high flow rates and long reach. Built with premium SS304 stainless steel, this monitor delivers reliable performance in harsh environments such as chemical plants, oil terminals, ports, and high-risk warehouses.
Key Features
- Heavy-duty SS304 stainless steel construction for superior corrosion resistance
- High flow rate: 4800 LPM with automatic nozzle
- Dual jetting patterns: Straight Stream & Fog
- 360° horizontal rotation for full coverage
- Vertical movement from -45° to +90°
- Wide compatibility with BS4504, ANSI150, GB flange standards
- Durable nozzle made of hard-coated anodized aluminium alloy
Technical Specifications
| Parameter | Details |
|---|---|
| Model | XH-80UT |
| Flow Rate | 4800 LPM (Automatic Nozzle) |
| Working Pressure | 10 Bar |
| Max Reach | 80 meters @ 4800 LPM |
| Fog Angle | 120° |
| Rotation Range | 360° Horizontal / -45° to +90° Vertical |
| Waterway Size | 2.5" (65mm) |
| Outlet | 2.5" NH Male Thread |
| Inlet | 4" Flange (BS4504 standard) |
| Material | Monitor & Tiller: SS304 Stainless Steel / Nozzle: Hard-coated Anodized Aluminium Alloy |
Applications
Ideal for industrial firefighting systems such as oil & gas facilities, chemical plants, marine ports, and large warehouses. Perfect for installations requiring ultra-high flow capacity and extended reach to cover large areas efficiently.
Get a Quote for Your Project
Fast delivery, professional fire monitor solutions, and technical support for industrial projects.
Frequently Asked Questions (FAQ)
The features an automatic nozzle delivering a maximum flow rate of 4800 LPM at 10 Bar. It can reach distances up to 80 meters, making it ideal for large-scale industrial firefighting applications.
The monitor and tiller are made of premium SS304 stainless steel for corrosion resistance, while the nozzle is constructed from hard-coated anodized aluminium alloy for durability under high-pressure operations.
Yes, supports dual jetting patterns: a straight stream for long-distance reach and a fog pattern for wide-area coverage. This allows flexible response depending on fire conditions.
The monitor rotates 360° horizontally and can be elevated vertically from -45° to +90°, providing full coverage of target areas without repositioning the base.
It is suitable for industrial installations such as oil & gas facilities, chemical plants, ports, warehouses, and high-risk storage areas. Ideal for fixed systems requiring high flow and long reach.
The comes with a 4" BS4504 standard flange. Other flange standards like ANSI150 or GB are also available, making it compatible with most industrial piping systems.
Consider factors such as required flow rate, reach, elevation and rotation coverage, nozzle type, and environmental conditions. Our technical team can provide guidance to select the monitor that matches your fire protection needs.
Routine inspections should include checking the nozzle, seals, and rotation mechanism. SS304 stainless steel ensures low corrosion, reducing maintenance frequency. Our engineers can provide maintenance guidelines for optimal operation.
