Stable Hose Storage for Hydraulic Systems
Hydraulic hoses are often exposed to repeated movement, bending, and handling during equipment operation and maintenance. When a hose is not properly stored, it may remain on the floor, become tangled, or suffer unnecessary mechanical damage. A hydraulic hose reel provides a defined storage position for controlled extension and retraction.

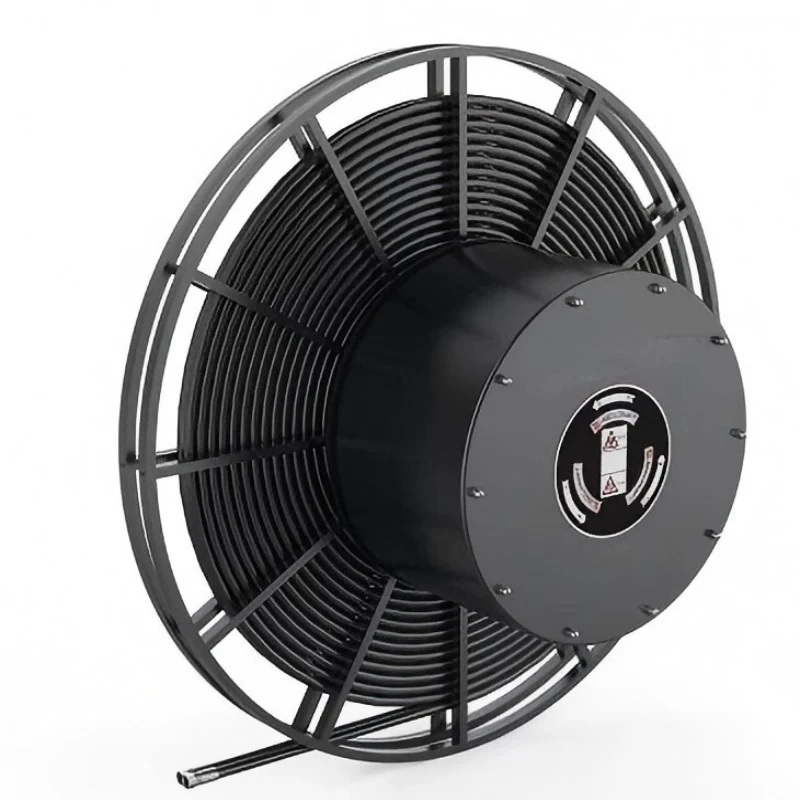

Hydraulic Hose Reel Construction
A typical hydraulic hose reel consists of several precision functional components working together to handle high-pressure fluids and frequent winding.
Reel Drum
Provides storage surface for the hose. Dimensions determine capacity and bending radius.
Support Frame
Carries the assembly and connects to the structure, providing mechanical stability during motion.
Retraction Drive
Spring-driven, motor, or hand crank designs controlling automatic or manual hose return.
Swivel & Guide
Swivel joint maintains fluid flow during rotation. Guide controls winding alignment.
Application & Operation Environments
Mobile & Heavy Machinery (Section 4 & 9)
Construction machinery and agricultural equipment require fluid connections away from the main unit. The reel keeps unused hose stored while maintaining reach for excavator attachments and field maintenance.
Industrial Workshops & Service Vehicles (Section 6 & 10)
Ideal for manufacturing plants, repair stations, and field service vehicles. Dedicated reel points organize working space and withstand vehicle vibration during transit.
Selection Guide & Technical Specifications
Choosing the correct reel requires matching the whole circuit system: pressure ratings, fluid compatibility, hose dimensions, and installation conditions.
| Parameter | Selection Requirement |
|---|---|
| Working Pressure | According to hydraulic system |
| Hose I.D. / Length | According to fluid flow & distance |
| Inlet / Outlet | Match hydraulic supply & hose assembly |
| Retraction Method | Spring / Manual / Motorized |
| Reel Material | Carbon Steel / Stainless Steel |
| Swivel Compatibility | Compatible with fluid & pressure |
| Specification | Details |
|---|---|
| Product Type | Hydraulic Hose Reel |
| Drive & Retraction | To Be Confirmed |
| Max Operating Pressure | To Be Confirmed |
| Hose I.D. & Length | To Be Confirmed |
| Mounting & Temp Range | To Be Confirmed |
| Body & Swivel Material | To Be Confirmed |
OEM Customization Solutions
Tailored for equipment manufacturers and system integrators. We support custom hose lengths, pressures, inlet/outlet thread connections, customized mounting brackets, stainless steel corrosion packages, private labeling, and OEM packaging.
Provide circuit requirements for direct engineering assistance →Why Use a Hydraulic Hose Reel?
- Controlled Deployment: Clear storage position prevents tangle.
- Reduced Labor: Automatic retraction simplifies repetitive tasks.
- Safe Workspace: Stores stiff hydraulic hoses safely off working floors.
- Flexible Mounting: Wall, vehicle platform, or machinery frame setups.
FAQ
