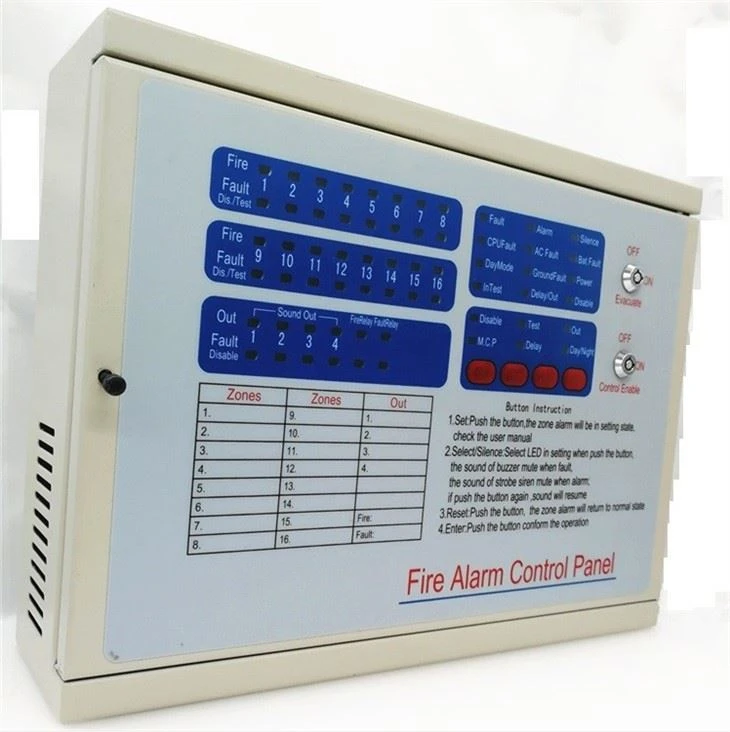

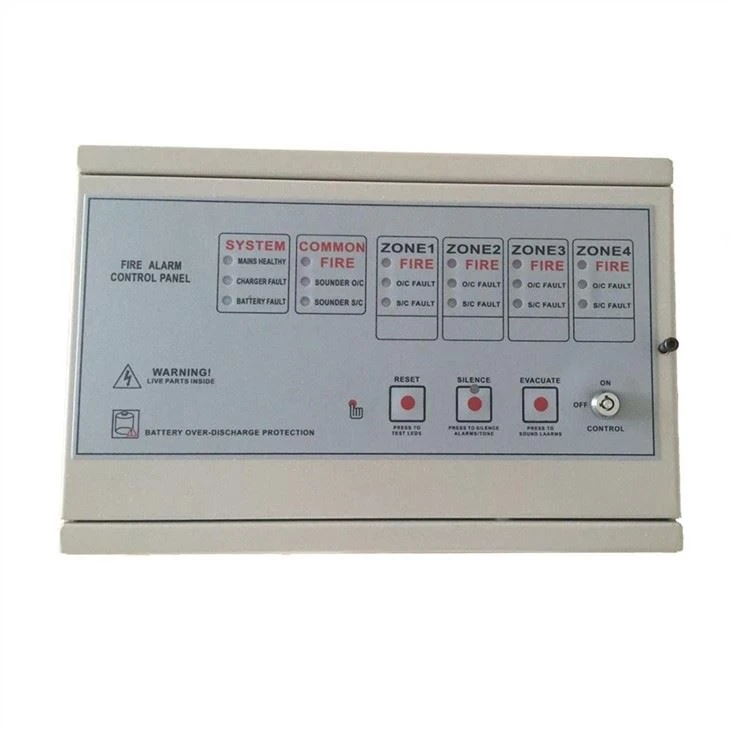

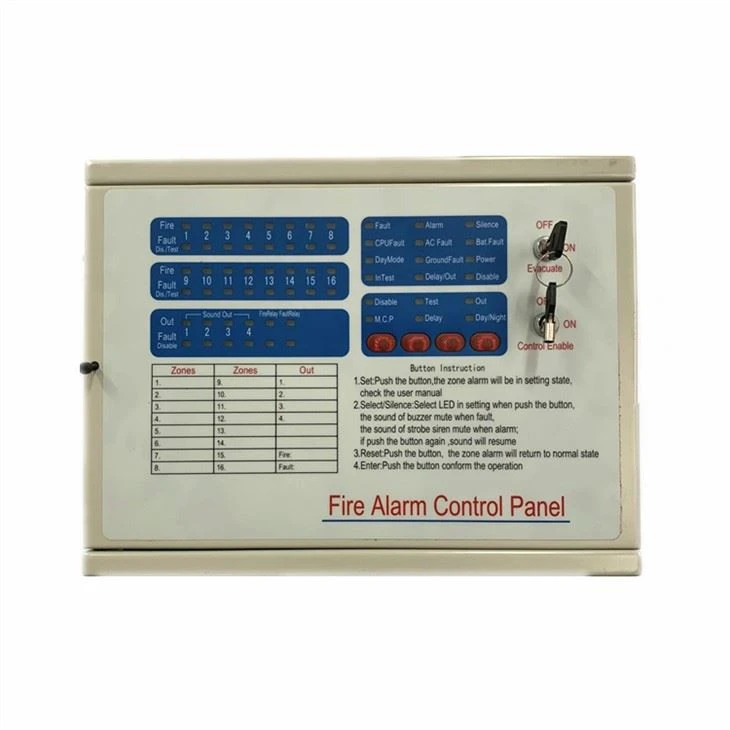

Fire Alarm System Control Panel

Specifications:

All Zones Accept Conventional Detectors And In Any Normally Open Contact Device

Day/Night Mode Selected

Zone Isolate Control

One Man Test

Key-control Evacuate Over-ride

Repeater Output Available

Fire Alarm Output For Remote Alarm

Class Change Terminal For Remote Control

Maximum 20 Conventional Detectors In One Zone

Auto/manual Mode Setting Enable Walk Test

Each Zone Can Be Disabled

Able To Report Short And Broken Circuit Of Detection Zones

Designed With Standby Batteries And Space Provision For Two-sealed Lead-acid Batteries

Every fire alarm we sell comes complete with a 5year manufacturer's warranty, provided it is serviced in accordance with the requirements of BS 5306 part 3. This guarantee does not cover defects caused by accident, misuse or neglect.

Technical Details:

Wireing diagram of fire alarm system:

Our Factory:

Our services:

INSTALLATION

Remove the locking screw which holds the front panel door closed. Mount the panels close as possible to the mains and zone cabling and connect their supply accordingly. Connect the batteries as per the diagram below, and check to see that panel is silent, with only the mains healthy lamp being illuminated. (The EOL devices should still be in place at this stage).

** Should you encounter any problems at this stage ****

*** DO NOT PROCEED, but contact your supplier for assistance ***

Any problems which the panel highlights at this stage will be due to inappropriate field wiring. MAKE SURE IT IS CHECKED FIRST.

Disconnect all sources of supply (including batteries) and proceed to terminate one zone to the panel. Remove the EOL device from the panel block, and fit it to the last detector on the field wiring (across -VE out and +VE in the detector base). Connect the mains and batteries, and ensure the panel is silent as before. Should everything be healthy, repeat? this procedure is for each zonal circuit until all circuits are connected.

Any problems highlighted at this stage will be due to field wiring devices connected to each zone. Re-check all cabling and devices if necessary.
