Xinhao is proud to have KITEMARK approved landing valves. We have a full range of landing valves for use with fire hydrants and different types of fire hoses. We have certifications in a variety of configurations such as angled, straight-through, right-angle, pressure-regulated "E", bib, and wedge. All of our landing valves are available with threaded and flanged inlet options.
Oblique Landing Valves Specification
Specification
Oblique Type Landing Valves
Body:Copper Alloy or LG2 as per requirement
Handwheel:Grey Cast Iron
Inlet:2.5"BSP male thread or BS4504 flanged
Outlet:2.5"BS336 Female instantaneous coupling with plastic cap and chain
Working Presssure:16 bar
Test Pressure:24bar
Nominal size:DN65 or 2-1/2"

Structure

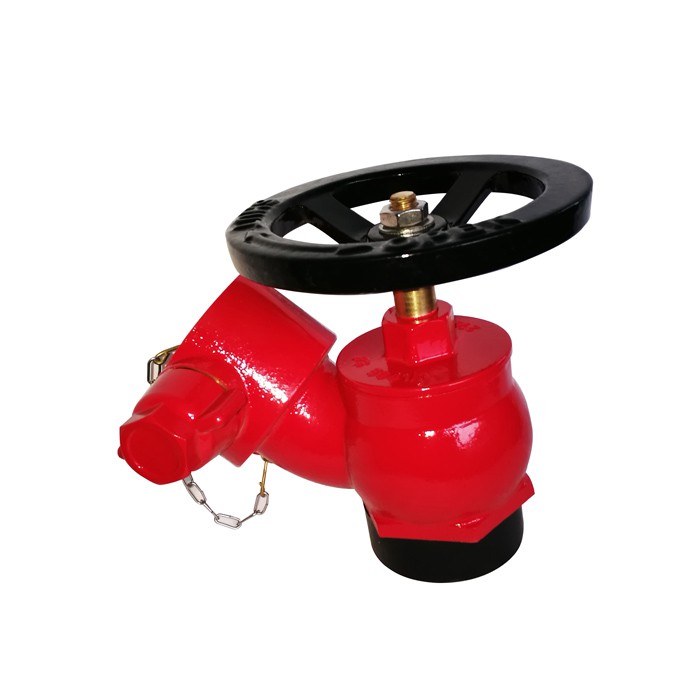

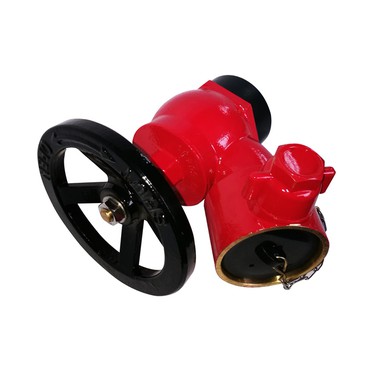

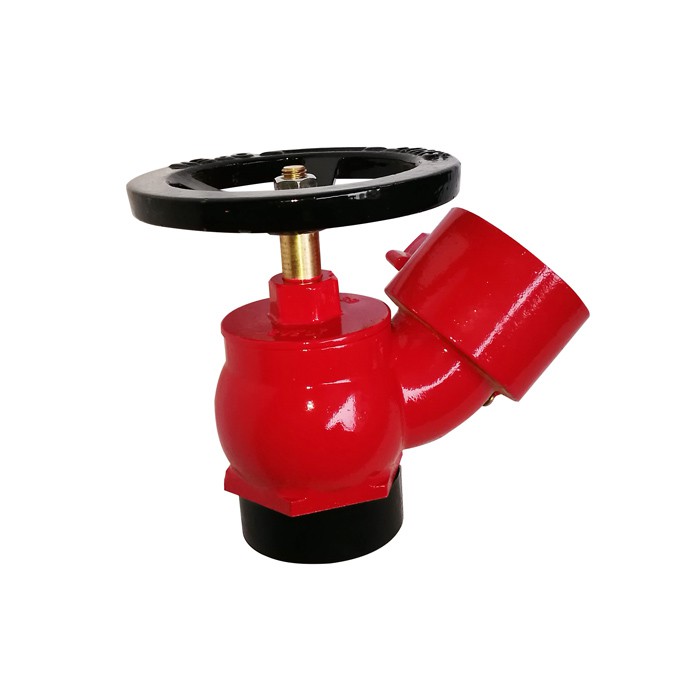

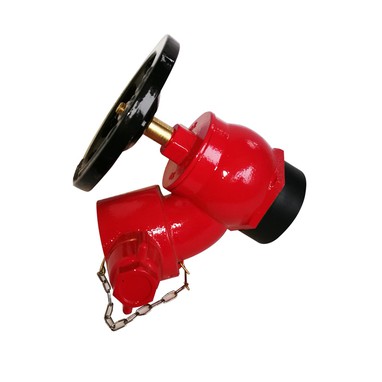

Oblique Landing Valve for Fire Hydrant System
Oblique Screw Landing Valves are manufactured to BS 5041.
The landing valves are classified under low pressure and are suitable for use at nominal
inlet pressure up to 16 bar.
Compact design with excellent flow characteristics
High quality casting finishes
Precise machining for metal to metal leak proof seating
Corrosion resistant
Maintenance free
Complete with Brass cap and chain
Straight-through design for ease of use
