Wet Riser Landing Valve

Wet Riser Landing Valves for Optimal Fire Protection

Construction of high-rise buildings brings about greater exposure to fire hazards. With many people densely occupying each floor, additional protection measures need to be put in place to ensure everyone's safety. Installing a wet riser system is crucial in buildings that exceed 18 meters in height.

The wet riser system is pressurized and permanently linked to a reliable water source. It includes an arrangement of pipes and landing valves that allow firefighters access to water throughout the building. One of the most critical components of the system is the wet riser landing valve.

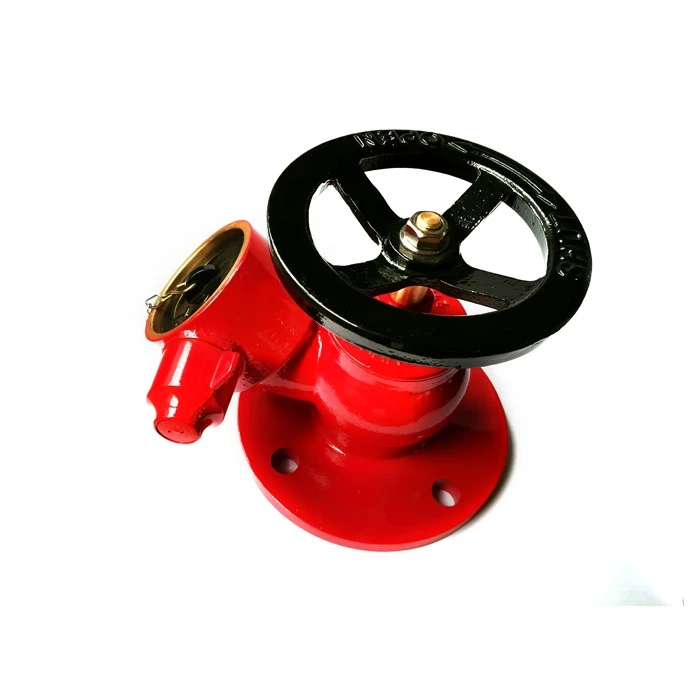

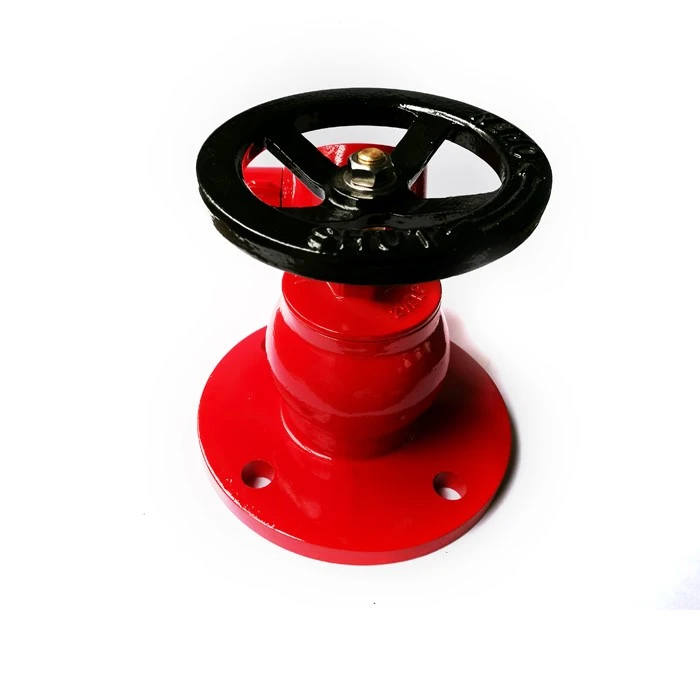

Flange oblique landing valves are well-suited for wet riser system implementation. They come equipped with flanged inlet and outlet connections that provide easy access for firefighters. These valves are manufactured in accordance with BS 5041 Part 1 standard, which ensures that they meet safety and quality requirements.

The wet riser landing valves are classified under low pressure, suitable for use with nominal inlet pressure of up to 15 bar. They are also designed to allow for replacement of the gland seal while under pressure, with the valve fully closed.

The body material of the landing valves is made of copper alloy to EN 1982, while the hand wheel material is made of grey cast iron to BS EN 1561. The blank caps are made of copper alloy as well. Additionally, the valves feature a replaceable disc facing rubber for added durability.

The landing valves come equipped with a strap and padlock to secure the hand wheel, counteracting any unauthorized use. They are painted with a black hand wheel and a red body for easy visibility during emergencies.

Product Parameter
