Fire Hose Reel for Building Fire Safety - Your Ultimate Guide to Fire Hoses & Reels
Professional Design and Engineering Adaptability
Designed specifically for building fire protection systems, the hose reel is compatible with various building structures, fire piping networks, and cabinet sizes. It supports left/right swing, fixed, or automatic retraction, ensuring smooth construction and installation.
Reliable Performance and Safety Guarantee
High-strength metal structure, wear-resistant bearings, and pressure-resistant hoses ensure smooth unwinding and stable water output.
Certified by LPCB or international fire safety authorities, meeting high standards of building fire safety requirements and reducing acceptance risks.
Customization Capability
Supports various hose diameters, lengths, and interface specifications, allowing for customized solutions to suit different scenarios such as commercial buildings, office buildings, hotels, hospitals, and public facilities.
Stable Supply and Engineering Support
Capable of mass production, ensuring timely delivery at each stage of the project.
Provides technical documentation, installation guidance, operation training, and after-sales maintenance support to ensure long-term reliable system operation.
Low Maintenance Costs and Durability
Mature structure, durable materials, and ease of maintenance reduce property management and long-term operating costs, improving the overall efficiency of building fire safety management.
Manual & Fixed Fire Hose Reel Parameters
Xinhao-03-D
Xinhao-03-E
Xinhao-04-A(A)
Xinhao-04-A(B)
Xinhao-04-A(B)
Xinhao-04-A(B)

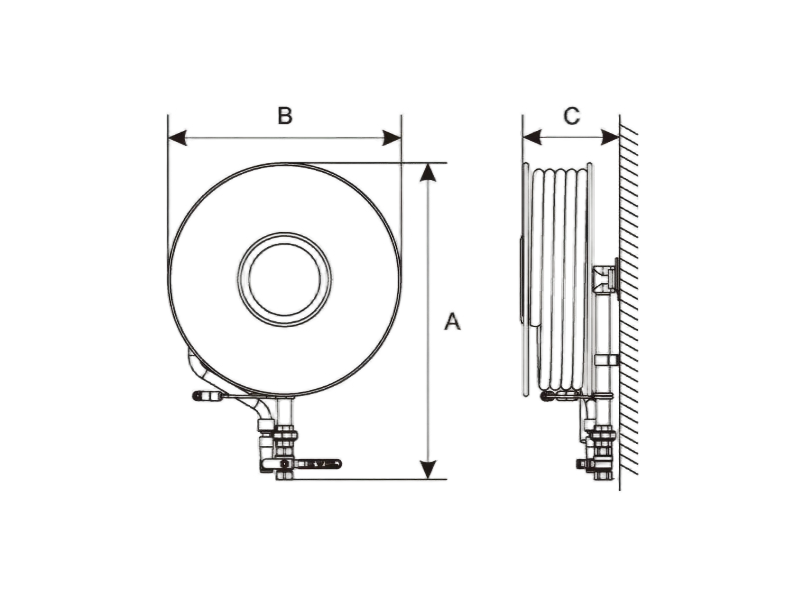

Xinhao-03-D/E-Structural diagram

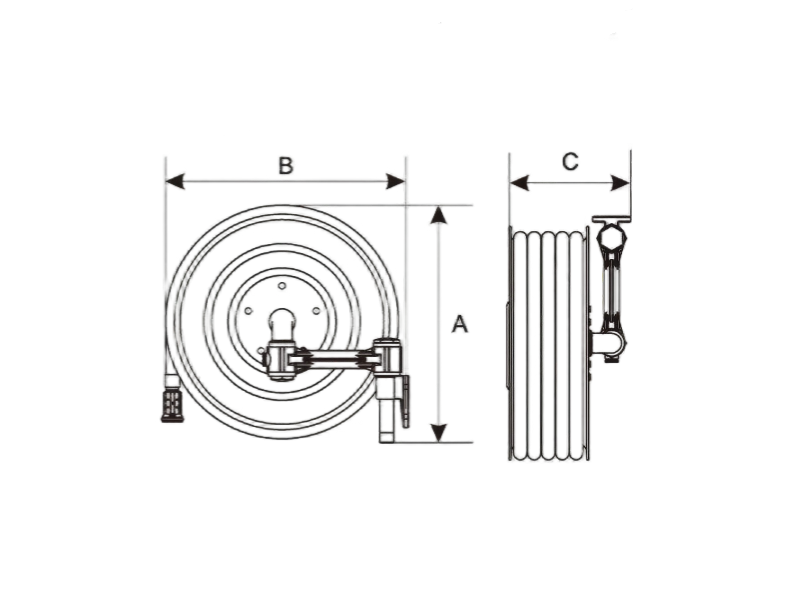

Xinhao-04-A-Structural diagram

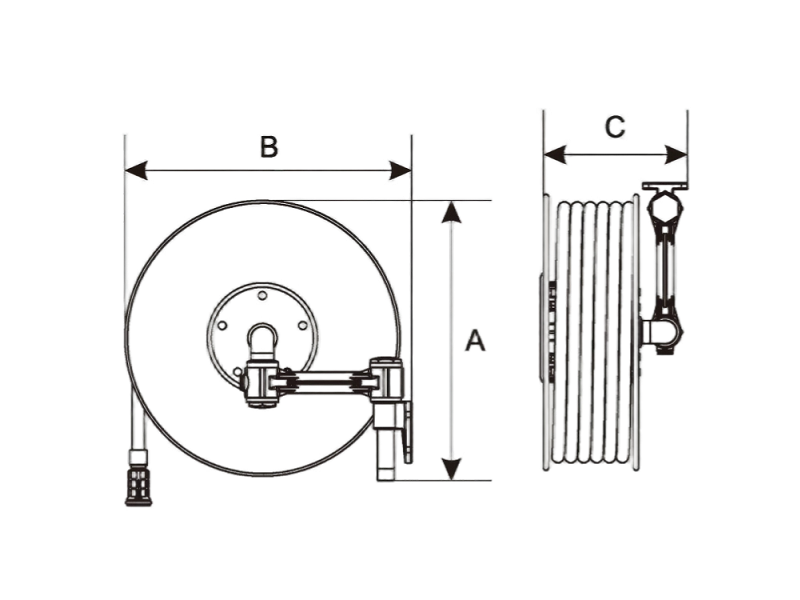

Xinhao-04-A(B)-Structural diagram
| Model No. | Type | Hose Diameter & length | Height (A in mm) | Width (B in mm) | Depth (C in mm) | Min. Cabinet size (W×H×D in mm) | Certificate |
|---|---|---|---|---|---|---|---|
| Xinhao-03-D | Manual & Fixed | 19mm×36m | 760 | 555 | 230 | 830×1040×350 | AS/NZS 1221 |
| Xinhao-03-E | Manual & Fixed | 25mm×36m | 816 | 600 | 280 | 880×1100×350 | AS/NZS 1221 |
| Xinhao-04-A(A) | Manual & Swinging Pipe | 19mm×30m | 570 | 580 | 270 | 700×700×300 | LPCB, BSI |
| Xinhao-04-B(A) | Manual & Swinging Pipe | 25mm×30m | 570 | 580 | 300 | 700×700×330 | LPCB, BSI |
| Xinhao-04-A(B) | Manual & Swinging Pipe | 19mm×30m | 570 | 580 | 270 | 700×700×300 | LPCB, BSI |
| Xinhao-04-B(B) | Manual & Swinging Pipe | 25mm×30m | 570 | 580 | 300 | 700×700×330 | LPCB, BSI |
