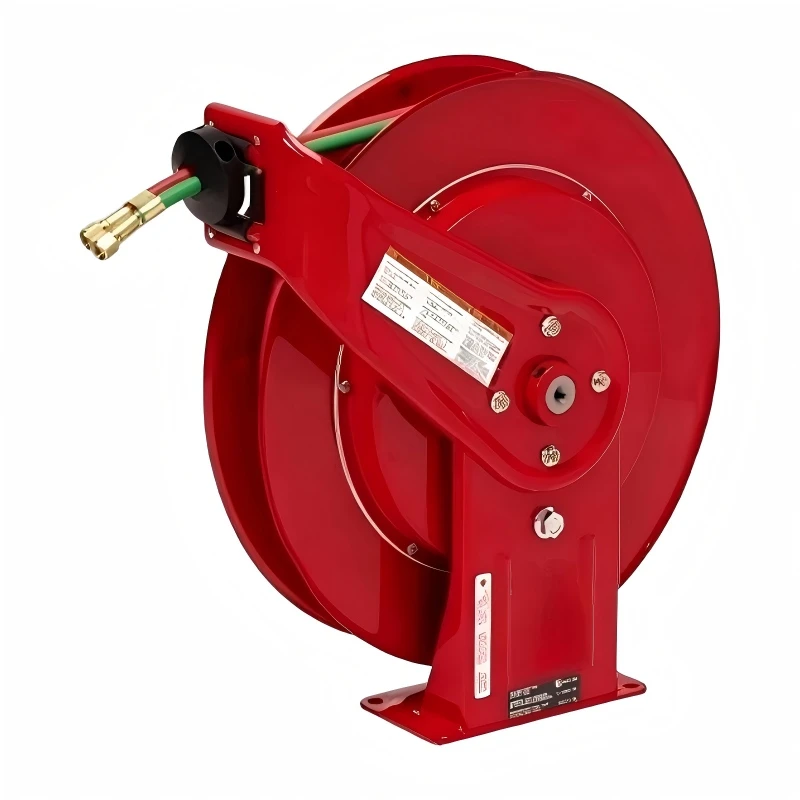

Oxy Acetylene Hose Reel Specifications
| Item | Specification |
|---|---|
| Hose Type | Twin Oxy-Fuel Hose |
| Gas Service | Oxygen / Acetylene |
| Hose Length | Approx. 10–30 m |
| Hose Size | Approx. 6–10 mm ID |
| Hose Construction | Twin Welding Hose |
| Hose Material | Synthetic Rubber |
| Working Pressure | Model Dependent |
| Reel Material | Steel |
| Reel Type | Manual / Spring Rewind |
| Mounting | Wall / Floor / Bench Mounting |
| Connection Type | Gas-Service Fittings |
| Operating Temperature | Model Dependent |
| Application | Oxy-Acetylene Welding and Cutting |

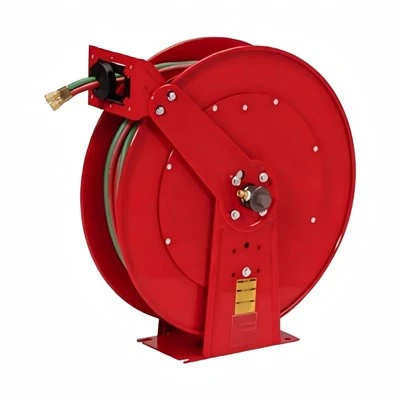

How Does an Oxy Acetylene Hose Reel Work?
The reel stores two connected gas hoses on the same drum, with one line supplying oxygen and the other supplying acetylene. Gas flows from the respective supply equipment through the hose connections toward the welding or cutting torch.
When the operator pulls the hose outward, the drum rotates and releases the required length. A manual locking system or spring-rewind mechanism, depending on the model, can keep the hose at the selected position during operation. After the work is finished, the hose is returned to the reel for organized storage.
The oxygen and acetylene lines must remain correctly identified and connected to their designated gas supplies. The reel should never be modified in a way that compromises hose separation, fittings, pressure control, or gas compatibility.
Suitable Working Environments
Welding Workshops
The reel can organize oxy-acetylene hoses around welding stations, keeping the working area clearer while providing controlled hose access.
Welding Workshops
Suitable for fabrication facilities where oxy-fuel cutting and heating equipment is used at designated workstations.
Equipment Maintenance Shops
Useful in maintenance areas where technicians periodically use gas welding or cutting equipment and need flexible hose reach.
Mobile Service Operations
Selected reel designs can be incorporated into service vehicles or portable workstations where organized gas-hose storage is required.
Manufacturing Support for Hose Reels
For bulk orders, hose reel configurations can be prepared according to the required hose length, hose diameter, reel structure, mounting method, and gas connection requirements. Different combinations can be coordinated for workshop welding stations, fabrication areas, maintenance facilities, and mobile equipment.
Production support can also cover hose assembly, reel frame configuration, connection fittings, labeling, and packing arrangements. Buyers can provide application requirements and installation conditions in advance so that the reel structure and hose configuration can be checked before production.
For orders involving different hose specifications or multiple reel configurations, production quantities and packing requirements can be coordinated according to the confirmed order details.
FAQ
What is an oxy hose reel used for?
It is used to store and dispense twin hoses that supply oxygen and acetylene to oxy-fuel welding, cutting, or heating equipment.
Can oxygen and acetylene hoses be stored on the same reel?
Yes, a purpose-designed twin-hose reel can store both lines together, provided the reel and hose assembly are specifically designed for separate oxygen and acetylene service.
What hose length is available for an oxy acetylene hose reel?
Common configurations range from approximately 10 to 30 m, with the actual length depending on the reel size and application requirements.
What should buyers confirm before ordering?
Buyers should confirm the hose length, internal diameter, gas compatibility, working pressure, connection type, reel material, mounting method, and rewinding mechanism.
