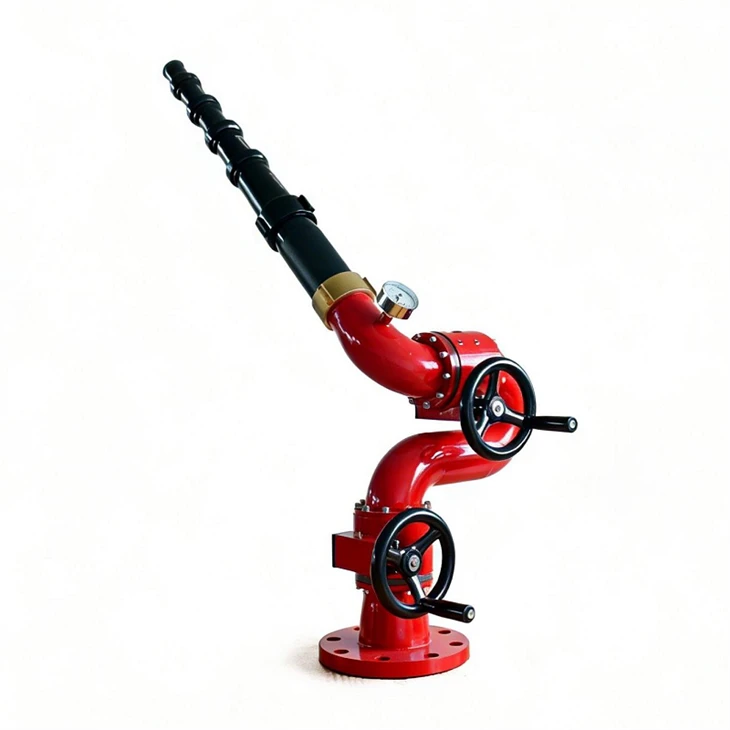

Manual Fire Water Monitor

Best Fire Monitor Manufacturer in China
304 Stainless Steel construction;
Flow Rate: 30-50 LPS (Stack Tip);
Jetting Pattern: Straight stream;
360° rotation horizontally;
-45° to +90° elevate vertically;
Flange standard: BS4504,ANSI150,GB,etc.

Send Inquiry

Manual Fire Water Monitor | 30–50 LPS SS304 Fire Monitor with Stack Tip

The XH30-50SHT manual fire water monitor is engineered for stable and efficient firefighting performance. Featuring a stack tip nozzle for straight stream projection and durable stainless steel construction, it is ideal for industrial and fixed fire protection systems requiring reliable medium-flow output.

Adjustable Flow Range

Flow rate from 1800–3000 LPM (30–50 LPS) to meet different firefighting needs.

Stack Tip Nozzle

Provides a powerful straight stream for long-distance fire suppression.

Full Rotation Coverage

360° horizontal rotation and vertical adjustment from -45° to +90°.

Durable SS304 Body

Corrosion-resistant stainless steel ensures long-term reliability in harsh environments.

Applications

Industrial plants and manufacturing facilities
Oil depots and fuel storage areas
Fixed fire protection systems
Marine and offshore installations
Warehouse fire safety systems

Technical Specifications

Parameter	Details
Model	XH30-50SHT
Flow Rate	1800–3000 LPM (30–50 LPS)
Nozzle Type	Stack Tip (Straight Stream)
Working Pressure	10 Bar
Max Reach	65 meters @ 3000 LPM
Rotation	360° Horizontal
Elevation	-45° to +90°
Waterway Size	2.5" (65mm)
Outlet	2.5" NH Male Thread
Inlet	4" Flange (BS4504 / ANSI150 / GB)
Monitor Material	SS304 Stainless Steel
Nozzle & Hand Wheel	Aluminium Alloy
