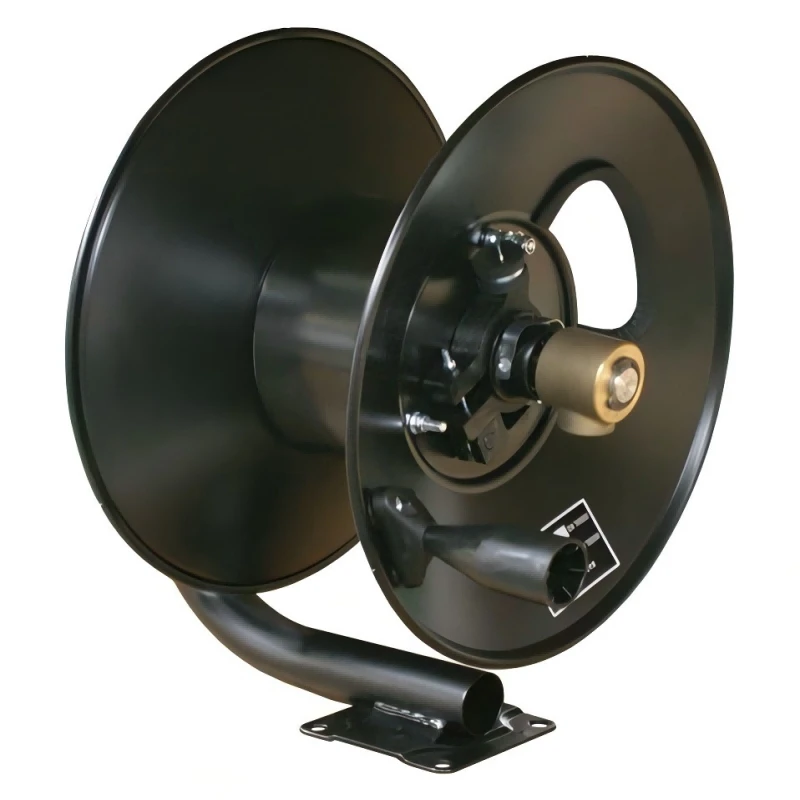

Hand-cranked Reel For Machine Key Specifications
| Model (without hose) | Gross weight (kg) | Maximum pressure (bar) | Hose inner diameter (mm) | Hose outer diameter (mm) | Hose Outlet | Hose Inlet | Hose length (m) | Dimensions (mm) Length | Dimensions (mm) Width | Dimensions (mm) Height |
|---|---|---|---|---|---|---|---|---|---|---|
| H16000 | 15 | 35 | 10 | 15 | 1/4 NPT Female Thread | 3/8 NPT Female Thread | 91 | 508 | 464 | 483 |
| H18000 | 15 | 69 | 13 | 19 | 1/2 NPT Female Thread | 1/2 NPT Female Thread | 61 | 508 | 464 | 483 |
| H28005 | 15 | 69 | 13 | 19 | 1/2 NPT Female Thread | 1/2 NPT Female Thread | 91 | 451 | 616 | 512 |
| H28000 | 17 | 69 | 13 | 19 | 1/2 NPT Female Thread | 1/2 NPT Female Thread | 91 | 508 | 616 | 483 |
| H19000 | 15 | 69 | 19 | 27 | 3/4 NPT Female Thread | 3/4 NPT Female Thread | 27 | 508 | 464 | 483 |
| H29005 | 16 | 69 | 19 | 27 | 3/4 NPT Female Thread | 3/4 NPT Female Thread | 30 | 386 | 616 | 479 |
| H29000 | 19 | 69 | 19 | 27 | 3/4 NPT Female Thread | 3/4 NPT Female Thread | 46 | 508 | 616 | 483 |
| H16000 M | 15 | 207 | 10 | 18 | 3/8 NPT Female Thread | 1/2 NPT Female Thread | 91 | 508 | 464 | 483 |
| H18000 M | 15 | 207 | 13 | 22 | 1/2 NPT Female Thread | 1/2 NPT Female Thread | 61 | 508 | 464 | 483 |
| H19000 M | 17 | 207 | 19 | 30 | 3/4 NPT Female Thread | 3/4 NPT Female Thread | 27 | 508 | 464 | 483 |
| H29000 M | 16 | 207 | 19 | 30 | 3/4 NPT Female Thread | 3/4 NPT Female Thread | 46 | 508 | 616 | 483 |
| H16000 H | 15 | 345 | 10 | 18 | 3/8 NPT Female Thread | 3/8 NPT Female Thread | 76 | 508 | 464 | 483 |
| CU6050LN | 5 | 21 | 10 | 15 | 3/8 NPT Female Thread | 3/8 NPT Female Thread | 15 | 279 | 425 | 292 |
| CU6100LN | 7 | 21 | 10 | 15 | 3/8 NPT Female Thread | 3/8 NPT Female Thread | 30 | 279 | 528 | 292 |
| CU8050LN | 6 | 21 | 13 | 19 | 1/2 NPT Female Thread | 1/2 NPT Female Thread | 15 | 337 | 425 | 363 |
| CU8100LN | 9 | 21 | 13 | 19 | 1/2 NPT Female Thread | 1/2 NPT Female Thread | 30 | 337 | 528 | 363 |
| CT6050HN | 6 | 345 | 10 | 19 | 3/8 NPT Female Thread | 1/2 NPT Female Thread | 30 | 337 | 391 | 397 |
| CT6100HN | 7.5 | 345 | 10 | 19 | 3/8 NPT Female Thread | 1/2 NPT Female Thread | 30 | 337 | 494 | 397 |
| CTJ6200HN | 13 | 345 | 10 | 19 | 3/8 NPT Female Thread | 1/2 NPT Female Thread | 61 | 505 | 406 | 505 |
| CTJ6200HN | 13 | 345 | 13 | 22 | 3/8 NPT Female Thread | 1/2" Male Thread | 41 | 505 | 406 | 505 |
Built for Machine-Side Air Supply
Machinery often requires compressed air close to the operating point. A hose that is too long for the task can occupy floor space, interfere with movement, or become difficult to store after operation.
This hand crank hose reel creates a dedicated hose storage point beside the machine.
| Machine-Side Requirement | Reel Function |
|---|---|
| Air hose needs to reach different working positions | Pull out the required hose length |
| Unused hose occupies the floor | Wind the hose onto the reel |
| Hose becomes tangled during storage | Maintain a defined winding path |
| Operator needs direct control | Manual crank operation |
| Fixed machine installation | Mount the reel at a selected position |
| Frequent air connection | Keep the hose ready near the machine |
Manual Hand Crank for Controlled Rewinding
The reel uses a hand crank rather than an automatic spring or motorized rewind system. The operator controls both the extension and rewinding process according to the actual working condition.
This configuration is particularly useful for fixed machine stations where the hose does not need to retract automatically.
- ✓ Direct manual control
- ✓ Controlled hose rewinding
- ✓ Simple mechanical operation
- ✓ No powered rewind mechanism
- ✓ Easy access for machine operators
- ✓ Suitable for fixed air-service points
The crank can be operated after the hose is disconnected or when the machine-side operation is completed, allowing unused hose to be returned to the reel.
Air and Gas Hose Configuration
The reel body provides the mechanical hose-management function, while the hose, seals, and connections are selected according to the intended medium and operating conditions.
For compressed air applications, configuration should consider:
For other gases, the hose and sealing materials should be selected according to the gas properties and system requirements.

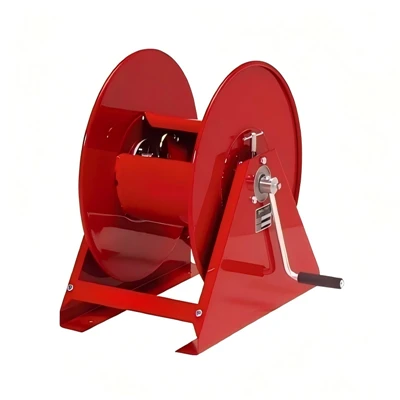

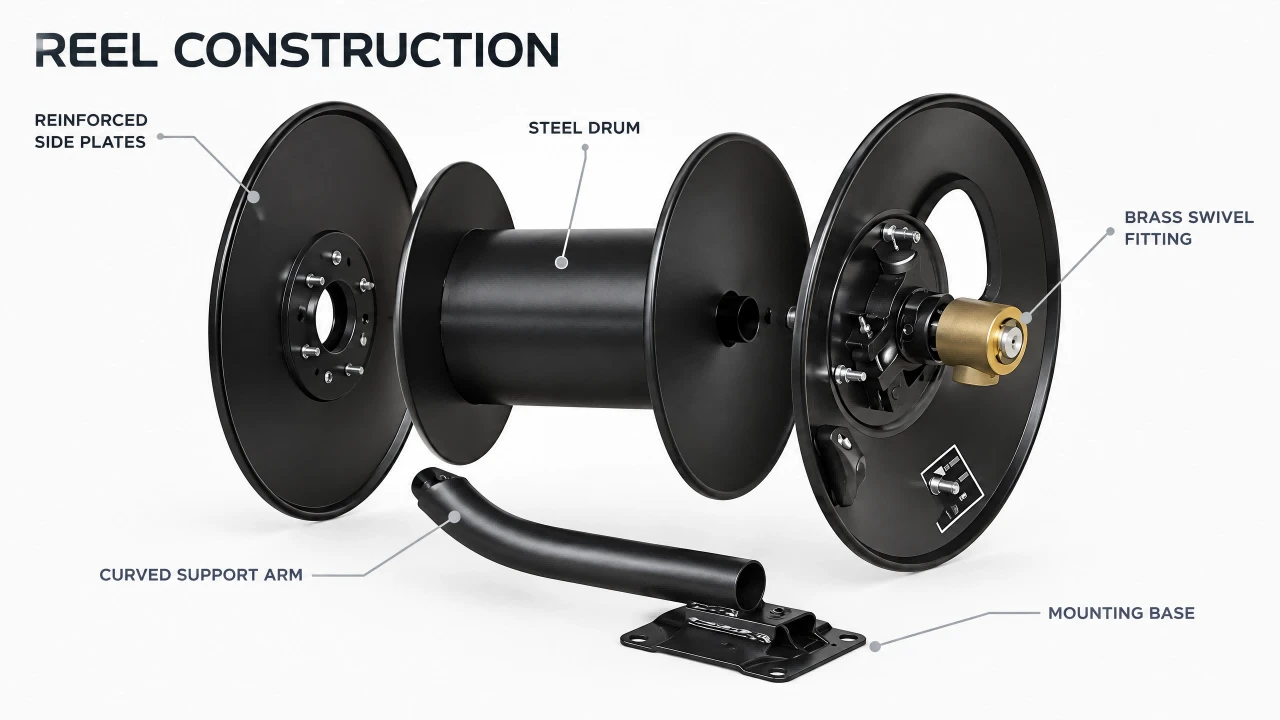

Main Components
Reel Frame
The frame supports the drum and associated components while providing the structural base for mounting the reel near the machine.
Hose Drum
The drum provides a defined winding surface for the hose. Proper winding helps reduce loose hose accumulation around the equipment.

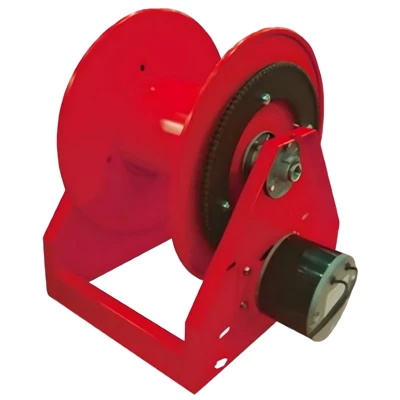

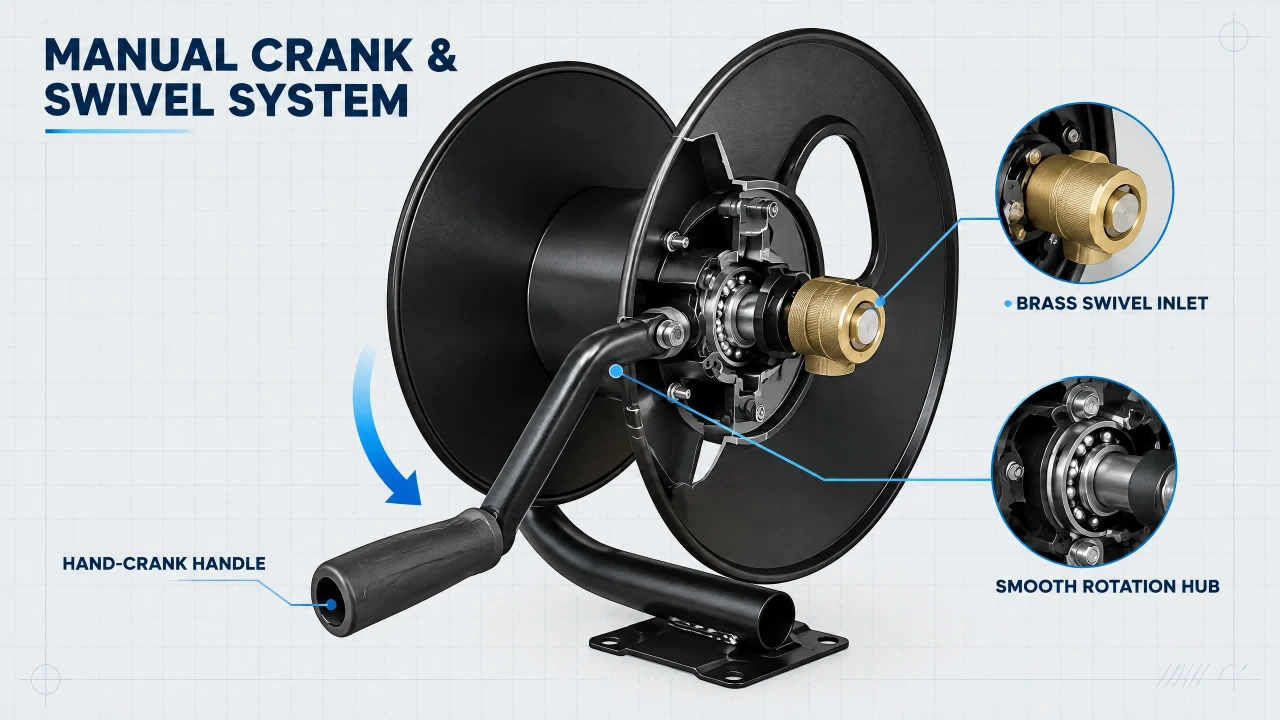

Hand Crank
The crank provides the mechanical input for manual hose rewinding. Its position can be configured according to the intended mounting arrangement.
Swivel Connection
Where required, a swivel connection can be used between the fixed supply line and rotating reel assembly, allowing the hose drum to rotate while maintaining the supply connection.
Mounting Bracket
The mounting structure secures the reel to a suitable wall, machine frame, support structure, or workstation.
Designed for Pneumatic Machinery
The reel can be positioned close to equipment that requires regular compressed-air access.
Typical applications include:
| Application | Typical Requirement |
|---|---|
| CNC Machines | Machine-side compressed air |
| Pneumatic Equipment | Flexible air connection |
| Machining Equipment | Air supply for operating processes |
| Assembly Machinery | Pneumatic tools and equipment |
| Production Lines | Localized air connection |
| Cleaning Stations | Compressed air hose access |
| Maintenance Stations | Controlled hose deployment |
| Industrial Workstations | Organized pneumatic service |
Installation Options
Wall Mounted
A wall-mounted configuration creates a fixed hose service point beside machinery or within a workshop.
Machine Frame Mounted
Where the machine structure provides a suitable mounting surface, the reel can be positioned directly on or beside the equipment.
Workstation Mounted
For dedicated pneumatic workstations, the reel can be installed at a convenient operating height to reduce unnecessary hose movement.
The final mounting arrangement should consider hose routing, operator access, drum rotation, connection position, and available installation space.
Hose Capacity and Working Pressure
Selecting the reel according to the hose specification is essential for machine air and gas applications.
Hose Capacity
The drum must accommodate the selected hose diameter and length without exceeding its designed winding capacity.
Working Pressure
The allowable working pressure is determined by the complete hose assembly and its compatible components. The selected hose and reel configuration should be suitable for the maximum operating pressure of the machine-side system.
Connection Size
Inlet and outlet connections should correspond to the existing air or gas supply system to avoid unnecessary adapters and flow restrictions.
Why Use a Hand Crank Hose Reel for Machines?
Controlled Hose Length
The operator can extend only the amount of hose required for the current machine operation.
Cleaner Machine Area
Unused hose is stored on the reel instead of remaining across the working floor.
Direct Operator Control
Manual rewinding allows the operator to determine when and how quickly the hose is returned to the reel.
Fixed Supply Point
The reel creates a defined connection and storage location around the machine.
Adaptable Configuration
Hose diameter, hose length, connections, mounting arrangement, and other specifications can be selected according to the equipment requirements.
Configuration for Your Machine
Different machines have different air supply requirements. A suitable reel configuration should be determined from the actual operating conditions rather than selecting the reel by hose length alone.
Please provide the following information when requesting a configuration:
| Required Information | Example |
|---|---|
| Medium | Compressed Air / Gas |
| Working Pressure | XX bar |
| Hose ID | XX mm |
| Hose Length | XX m |
| Inlet Connection | XX |
| Outlet Connection | XX |
| Mounting Position | Wall / Machine Frame |
| Operating Temperature | XX °C |
| Application | CNC / Pneumatic Machine / Workstation |
Based on these parameters, the reel can be configured around the machine's hose capacity, connection requirements, and installation conditions.
FAQ
Is this an automatic hose reel?
No. This model uses a manual hand crank for hose rewinding. It is designed for applications where the operator prefers direct control over hose storage.
Can it be used for compressed air?
Yes. The reel can be configured for compressed air hose applications according to the required hose specification, pressure, connections, and operating conditions.
Can the hose length be customized?
Yes. Hose length can be selected according to the required distance between the reel and the machine operating position, subject to the reel's capacity.
Can the hose diameter be customized?
Yes. The hose diameter should be selected according to the required air flow, working pressure, and reel capacity.
Can the reel be installed beside a machine?
Yes. It can be installed at a suitable position near machinery, provided that the mounting surface can safely support the reel and the hose routing allows unobstructed operation.
Does the reel include the hose?
The hose can be supplied according to the selected configuration. Hose specifications should be confirmed before ordering.
Can the inlet and outlet connections be customized?
Connection specifications can be configured according to the machine-side air or gas system. The required thread or connection type should be confirmed before production.
What information should I provide for selection?
The most useful information includes the medium, working pressure, hose ID, hose length, connection size, mounting position, and machine application.
